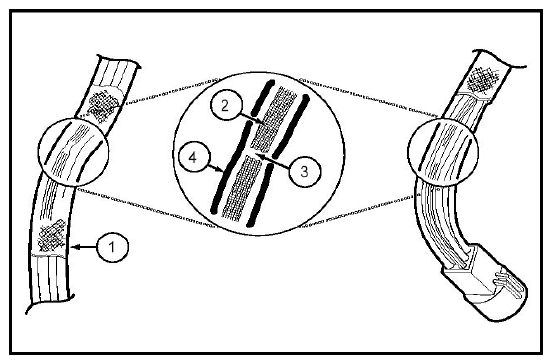

Broken Wire Strands In Harness

1. Wiring harness tape
2. Wiring strand
3. Broken strands intermittent signal
4. Circuit insulation

Remove the tape and flex/feel each circuit for a reduction in diameter at break.

Fig 1: Identifying Broken Wire Strands In Harness

Courtesy of FORD MOTOR CO.
