OEM Ground Distribution: Grounds: G103

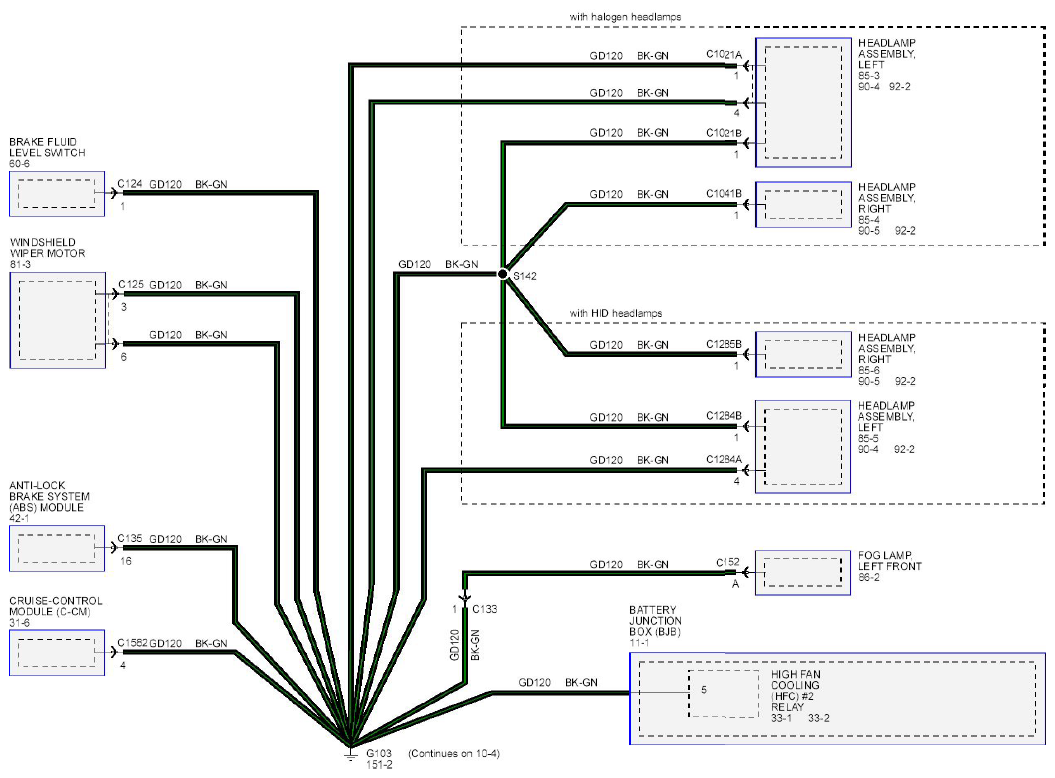

Fig 1: Grounds System Wiring Diagram (G103)

G08748275

Courtesy of FORD MOTOR CO.
