Selector Lever - Paddle Shift

  1. Remove the driver air bag module, REFER to SUPPLEMENTAL RESTRAINT SYSTEM .

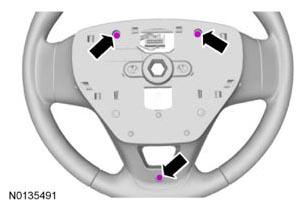

  2. G08616272

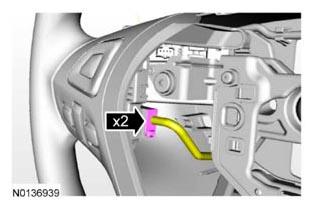

  3. On both sides.
    G08616273

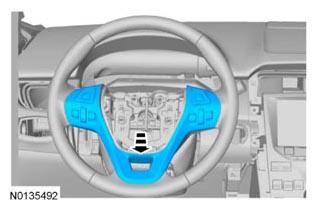

  4. G08616274

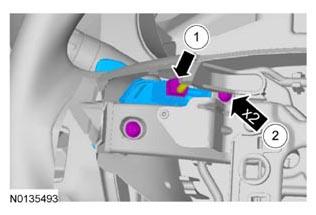

    • To install, tighten to 5 Nm (44 lb-in).
      G08616275
  6. To install, reverse the removal procedure.
