Power Transfer Unit (PTU): Installation

NOTE: Install a new compression seal whenever the PTU is removed from the vehicle.

Install the new compression seal.

Courtesy of FORD MOTOR CO.
NOTE: It may be necessary to rotate the output shaft flange in either direction to align the splines of the PTU to the splines of the transaxle.

Position the PTU and install the 5 PTU bolts.
- Tighten to 90 Nm (66 lb-ft).

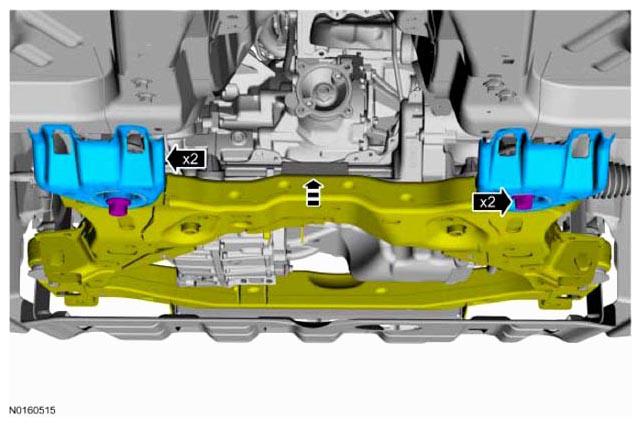

Install the 2 front subframe brackets and the 2 new front subframe rearward bolts.
- Tighten to 200 Nm (148 lb-ft).
Courtesy of FORD MOTOR CO.

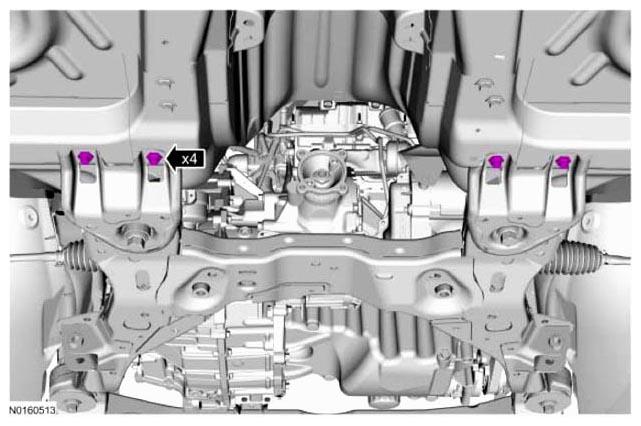

Install the 4 new front subframe bracket bolts.
- Tighten to 55 Nm (41 lb-ft).
Courtesy of FORD MOTOR CO.

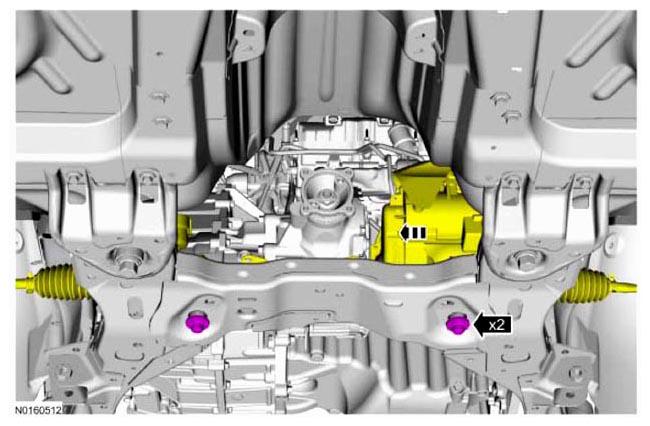

Position the steering gear and install the 2 new steering gear bolts.
- Tighten to 165 Nm (122 lb-ft).
Courtesy of FORD MOTOR CO.
If equipped, Install the RH turbocharger oil return line. Refer to INSTALLATION .
NOTE: Inspect the O-ring seals and replace as necessary.

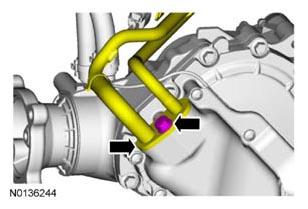

If equipped, install the PTU coolant tubes and the bolt.
- Tighten to 25 Nm (18 lb-ft).
Courtesy of FORD MOTOR CO.

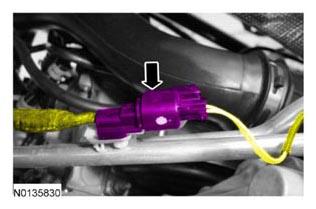

If equipped, connect the PTU cooling system temperature sensor electrical connector.

Courtesy of FORD MOTOR CO.
Position the engine roll restrictor to the transaxle and install the engine roll restrictor bracket and the 2 bolts.
- Tighten the engine roll restrictor-to-transaxle bolts to 103 Nm (76 lb-ft).
- Tighten the rear engine roll restrictor bolt to 90 Nm (66 lb-ft).
Position the PTU support bracket.
- Install the 3 PTU support bracket-to-engine bolts.
  - Tighten to 48 Nm (35 lb-ft).
- Install the 2 PTU support bracket-to-Power Transfer Unit (PTU) bolts.
  - Tighten to 48 Nm (35 lb-ft).
If equipped, connect the PTU vent hose.
NOTE: Line up the index marks made during removal.

Install the 4 driveshaft-to-output flange bolts.
- Tighten to 70 Nm (52 lb-ft).
Install the RH catalytic converter. REFER to CATALYTIC CONVERTER - RH, 3.5L GTDI or REFER to CATALYTIC CONVERTER - RH MANIFOLD .
Install the exhaust flexible pipe. Refer to EXHAUST SYSTEM .
Install the RH halfshaft. REFER to HALFSHAFT - RH, ALL WHEEL DRIVE (AWD) .
NOTE: Vehicle shown in illustration without PTU cooler. Vehicles with PTU cooler similar.

Remove the PTU fill plug.

Courtesy of FORD MOTOR CO.

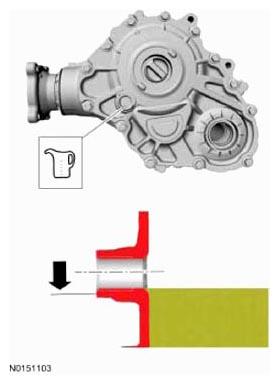

Fill the PTU fluid level even with the bottom of the fill opening.

Courtesy of FORD MOTOR CO.
Apply silicon sealant to the drain plug threads and install the fill plug.
- Tighten to 20 Nm (177 lb-in).
Courtesy of FORD MOTOR CO.
If equipped with PTU cooling, fill the cooling system. REFER to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
Inspect the transmission fluid level and add clean, specified fluid as necessary.
Check and if necessary, adjust the front toe. Refer to SUSPENSION SYSTEM - GENERAL INFORMATION .
