Transfer Case Cooler: Installation

Courtesy of FORD MOTOR CO.

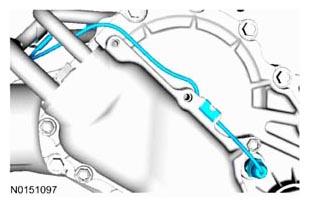

Courtesy of FORD MOTOR CO.

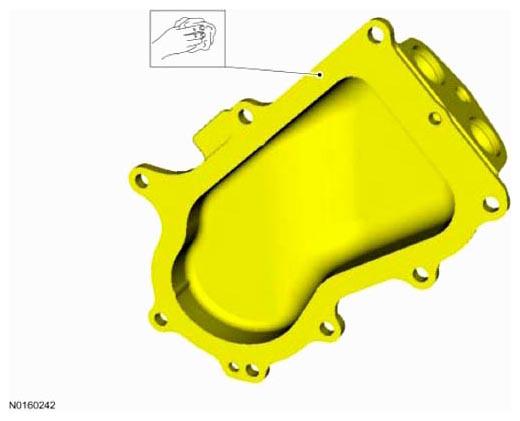

Courtesy of FORD MOTOR CO.

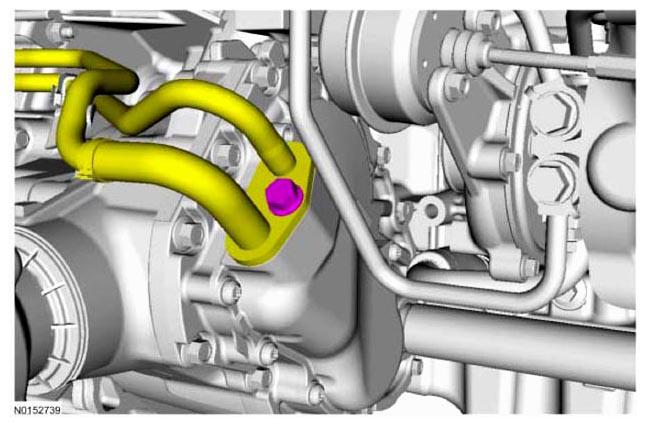

- Tighten to 12 Nm (106 lb-in).

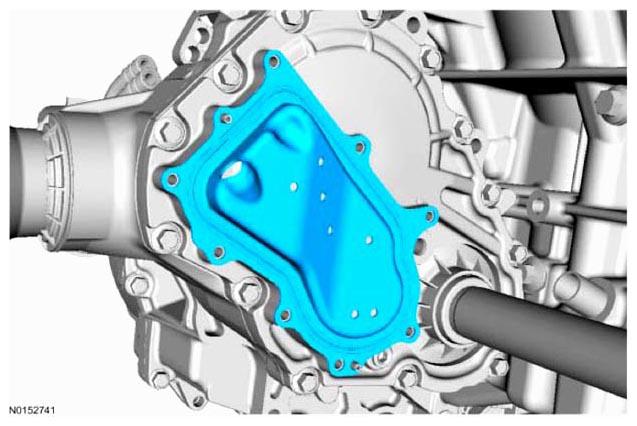

Courtesy of FORD MOTOR CO.

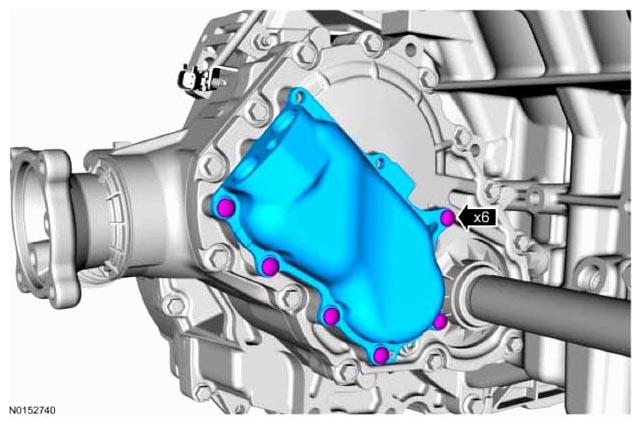

- Tighten to 25 Nm (18 lb-ft).

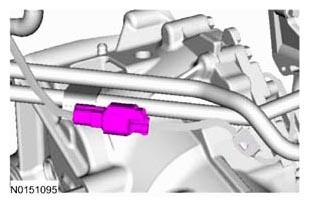

Courtesy of FORD MOTOR CO.

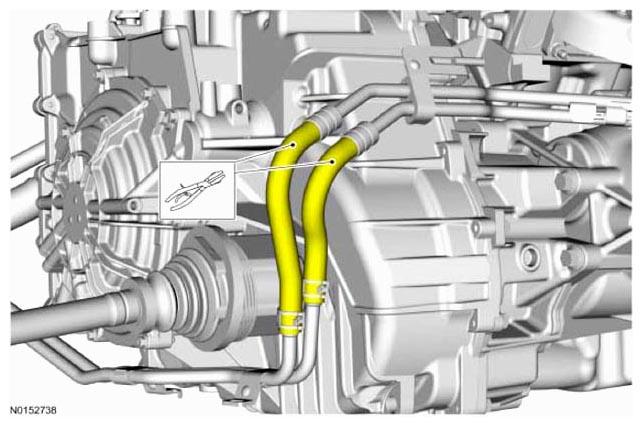

Remove hose clamp pliers.

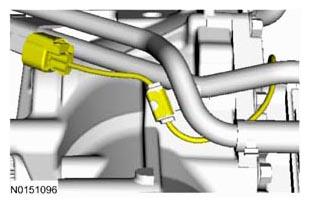

Courtesy of FORD MOTOR CO.
Fill the PTU fluid level. Refer to POWER TRANSFER UNIT (PTU) DRAINING AND FILLING .
NOTE: Replace the O-ring before installing the PTU temperature sensor.
- Tighten to 12 Nm (106 lb-in).

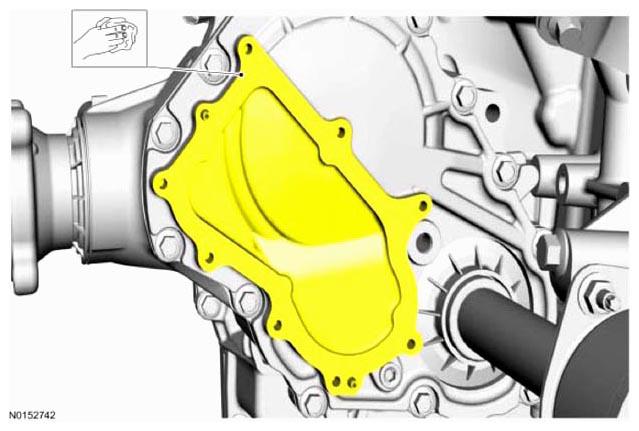

Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.

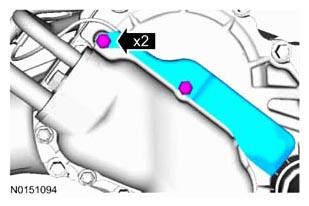

Courtesy of FORD MOTOR CO.
- Tighten to 12 Nm (106 lb-in).
Courtesy of FORD MOTOR CO.
Install the RH catalytic converter. Refer to EXHAUST SYSTEM .
Fill and bleed the cooling system. Refer to ENGINE COOLING SYSTEM .
