General Procedure

WARNING: Before beginning any service procedure, refer to SAFETY WARNINGS . Failure to follow this instruction may result in serious personal injury.
  1. G07430631Courtesy of FORD MOTOR CO.
  2. Place the selector lever in DRIVE.

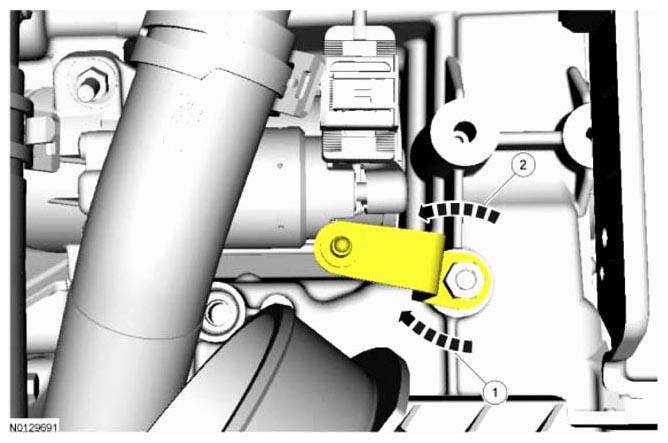

    1. Rotate the manual control lever clockwise until it stops.
    2. Rotate the manual control lever counterclockwise one detent.
      G09089675Courtesy of FORD MOTOR CO.

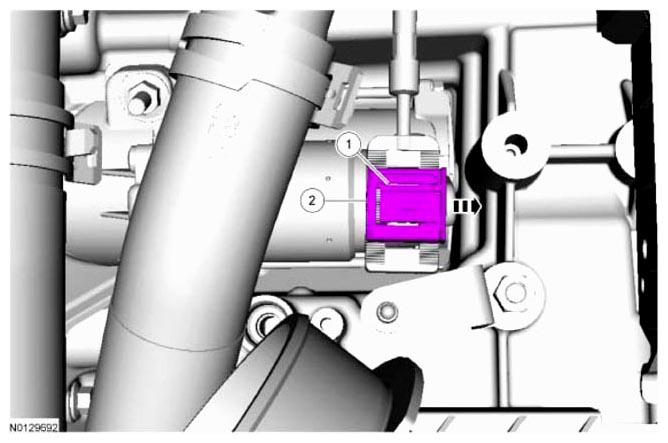

    1. Gently pry the latch up.
    2. Push the lock tab to slide it over.
      G09089676Courtesy of FORD MOTOR CO.

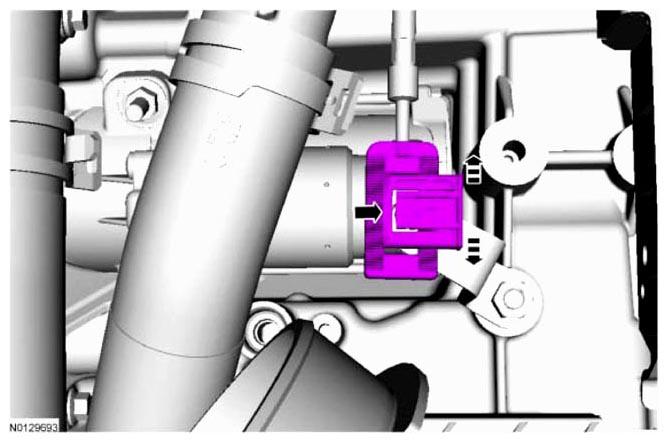

  5. G09089677Courtesy of FORD MOTOR CO.

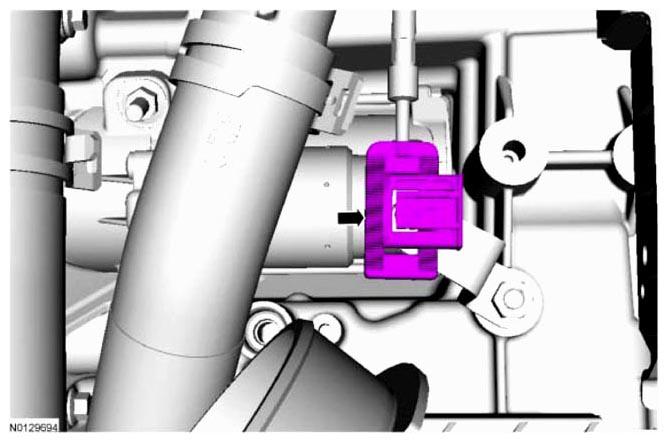

  6. NOTE: To prevent selector lever cable damage, do not apply force to the selector lever cable between the manual control lever and the selector lever cable bracket.
    NOTE: Make sure the selector lever cable end is correctly installed onto the manual control lever ball stud by pulling back on the selector lever cable end.
    G09089678Courtesy of FORD MOTOR CO.

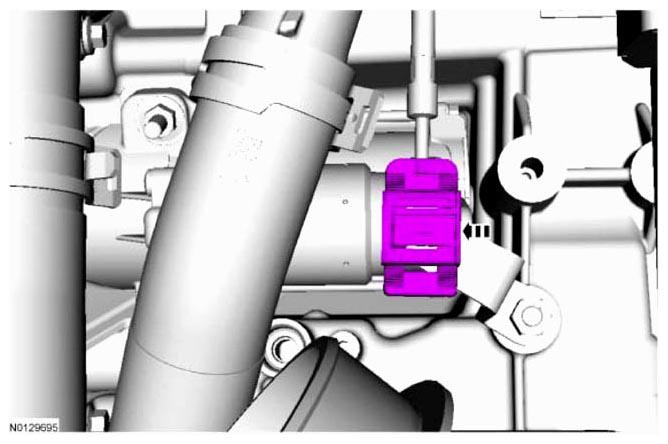

  7. NOTE: After locking the adjuster, pull back on the adjuster to make sure it is securely installed.
    G09089679Courtesy of FORD MOTOR CO.
  8. Verify the vehicle starts in PARK and NEUTRAL only and the reverse lamps illuminate in REVERSE.
