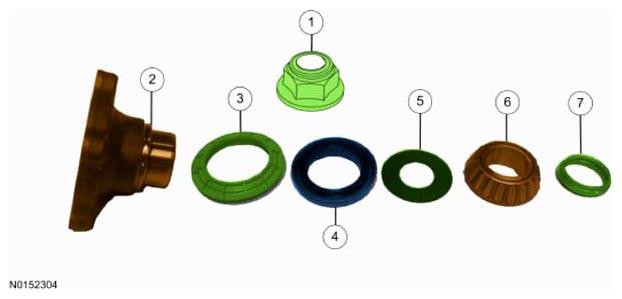

Exploded View

G09089781Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7275 Pinion flange nut (part of 7275 kit)
2 7B214 Output pinion flange
3 7B214 Pinion flange dust deflector (part of 7B214)
4 7275 Output shaft seal (part of 7275 kit)
5 7H421 Oil slinger
6 7H451 Outer Pinion bearing
7 7275 Collapsible spacer (part of 7275 kit)
