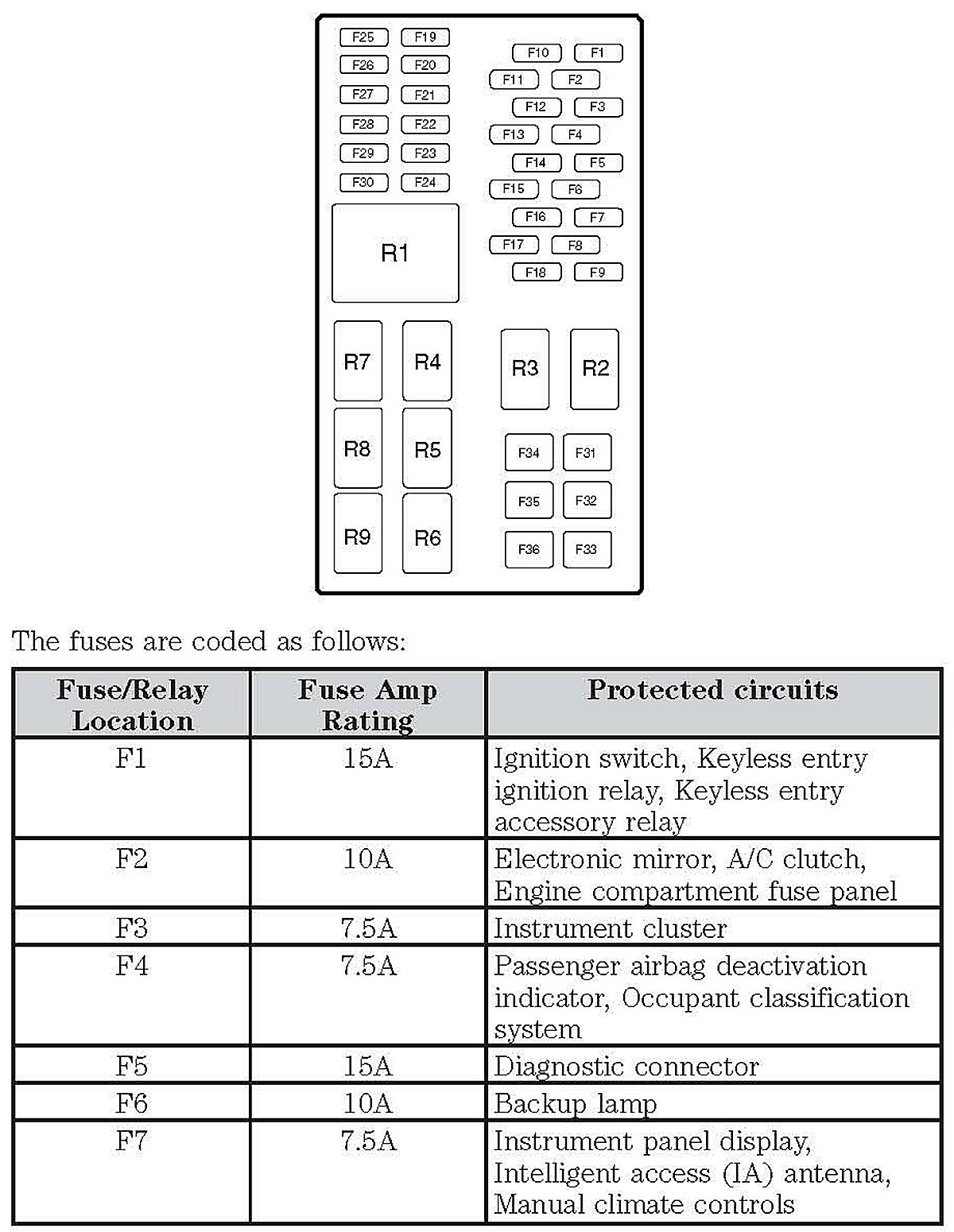

Passenger Compartment Fuse Panel
Passenger Compartment Fuse Panel
The fuse panel is located behind the glove box.
