Home
>>
Ford
>>
2013
>>
Fiesta L4-1.6L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>
Power Distribution Box
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

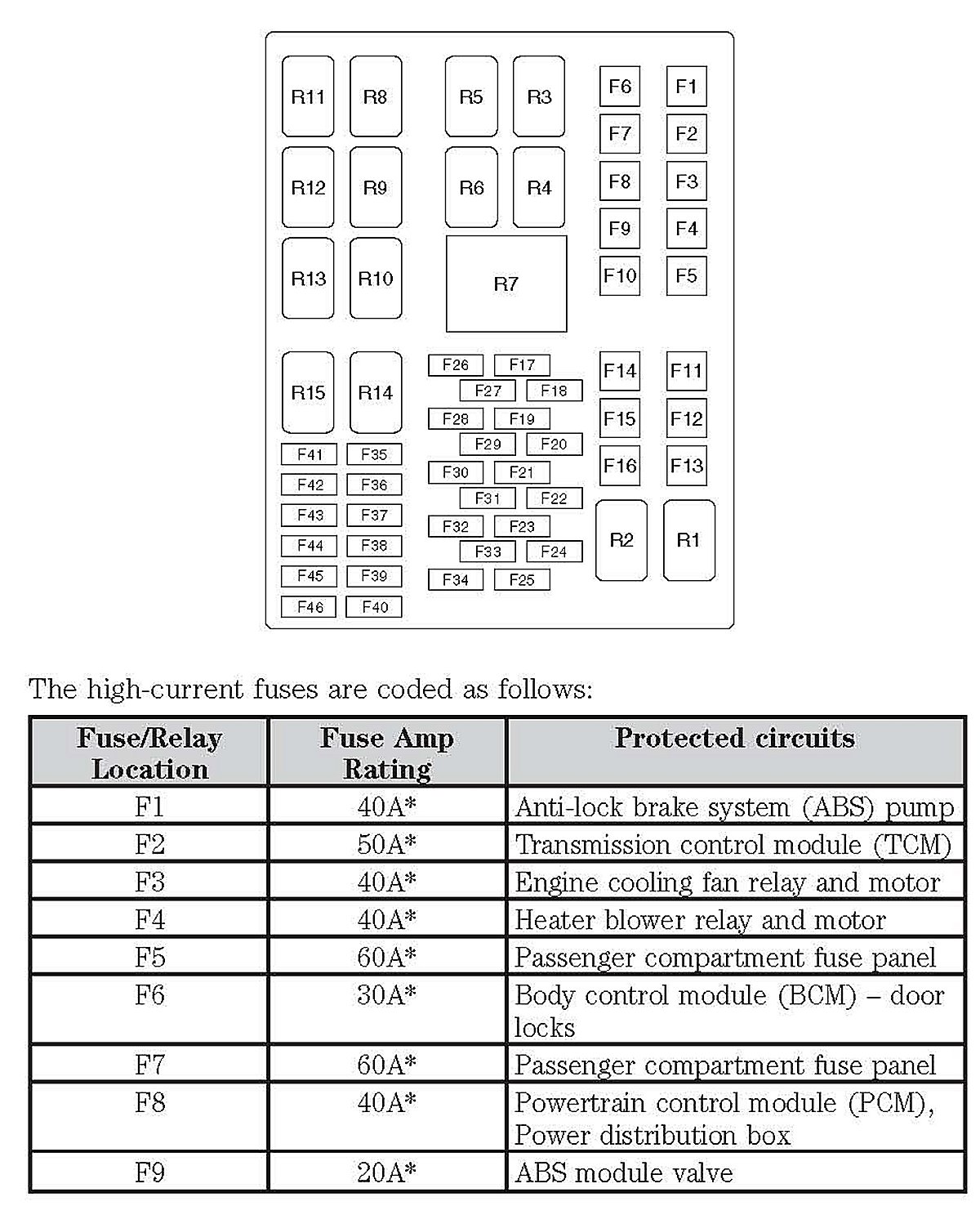

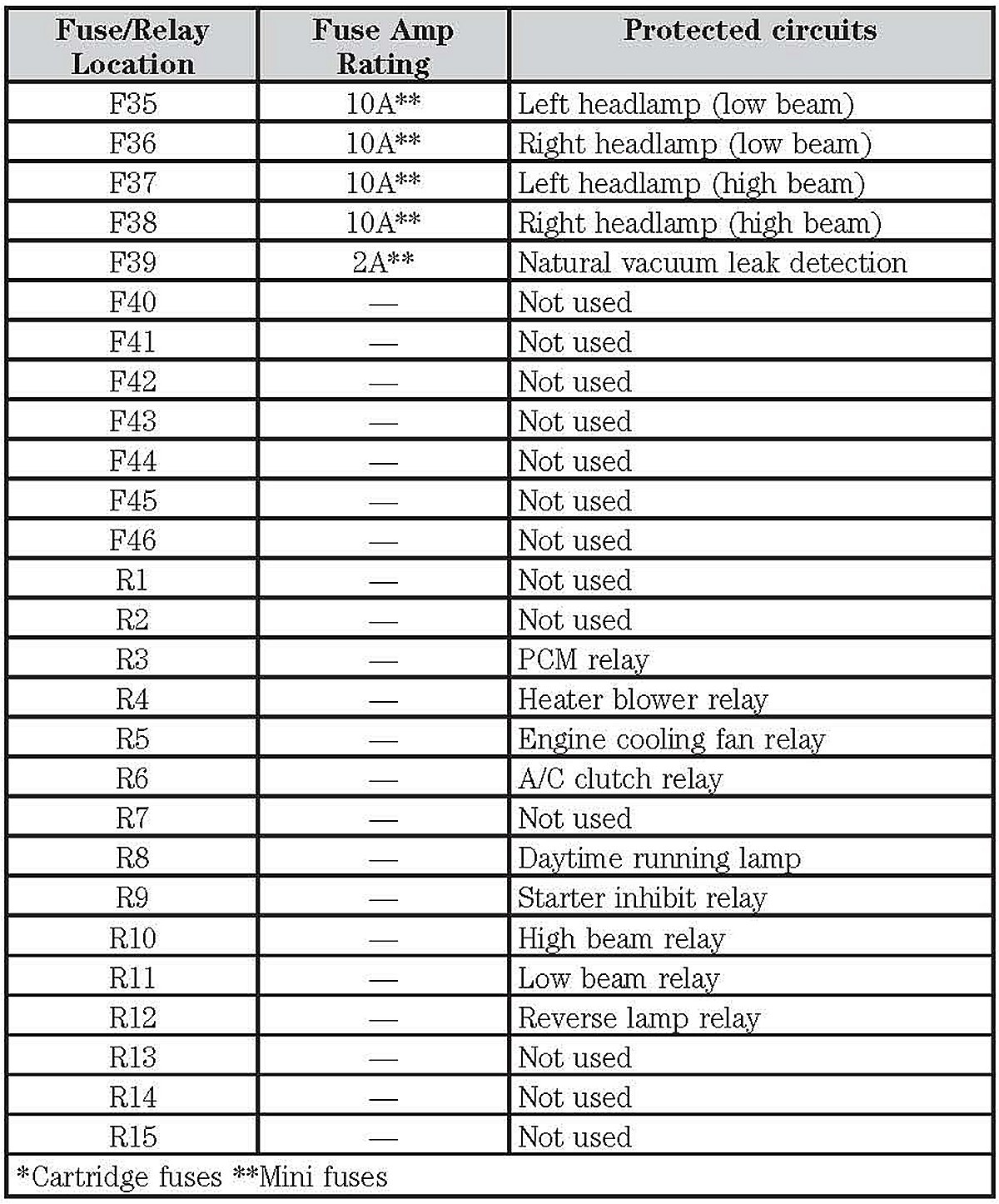

Power Distribution Box
Power Distribution Box
The power distribution box is located in the engine compartment.
