Hydraulic Control Unit (HCU): Notes

SPECIAL TOOLS

G06139341
Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

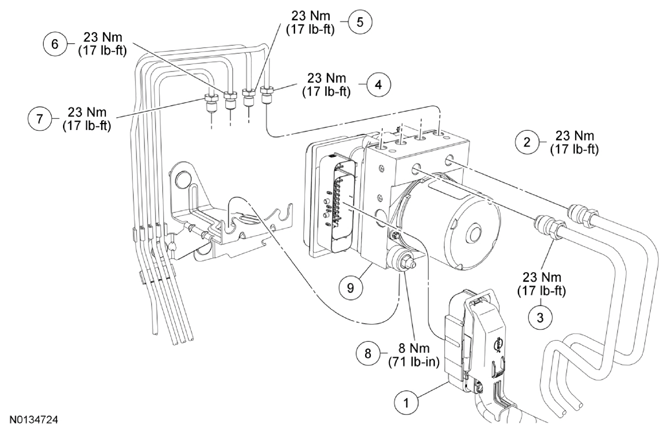

Fig 1: Hydraulic Control Unit Components With Torque Specifications
G08624675Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - ABS electrical connector (part of 14A005)
2 - Master cylinder secondary brake tube-to-Hydraulic Control Unit (HCU) fitting (part of 2C360)
3 - Master cylinder primary brake tube-to-HCU fitting (part of 2C360)
4 - LH front brake tube-to-HCU fitting (part of 2C296)
5 - RH rear brake tube-to-HCU fitting (part of 2C296)
6 - LH rear brake tube-to-HCU fitting (part of 2C296)
7 - RH front brake tube-to-HCU fitting (part of 2C296)
8 3B676 Bracket-to-HCU nut (2 required)
9 2C405 HCU
