Hydraulic Control Unit (HCU): Notes
SPECIAL TOOLS
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada) |
WSS-M6C62-A or WSS-M6C65-A1 |

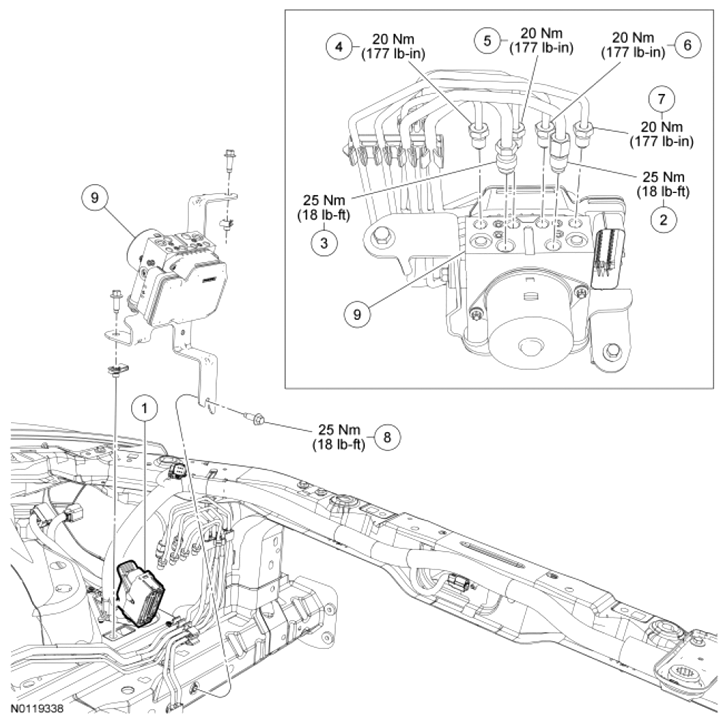

| Item | Part Number | Description |
|---|---|---|
| 1 | - | ABS module electrical connector (part of 14A005) |
| 2 | - | Master cylinder primary brake tube fitting (part of 2269) |
| 3 | - | Master cylinder secondary brake tube fitting (part of 2269) |
| 4 | - | RH front brake tube fitting (part of 2C296B) |
| 5 | - | LH front brake tube fitting (part of 2C296A) |
| 6 | - | RH rear brake tube fitting (part of 2C360) |
| 7 | - | LH rear brake tube fitting (part of 2C360) |
| 8 | W500223 | Hydraulic Control Unit (HCU) bracket-to-frame bolt (3 required) |
| 9 | 2C215 | HCU |
