Wheel Speed Sensor - Front: Notes

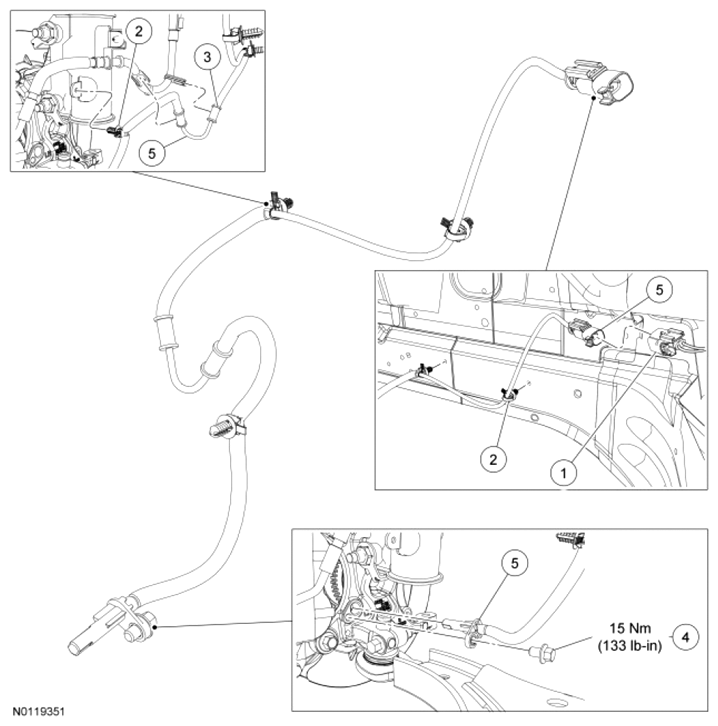

Fig 1: Front Wheel Speed Sensor Replacement Components With Torque Specifications
G07473870Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Wheel speed sensor electrical connector (part of 14290)
2 - Wheel speed sensor harness pin-type retainers (part of 2C204) (3 required)
3 - Wheel speed sensor grommets (part of 2C204) (2 required)
4 W500020 Wheel speed sensor bolt
5 2C204 Wheel speed sensor
