Wheel Speed Sensor Ring - Front: Installation

  1. Using the Wheel Speed Sensor Remover/Installer, install the front wheel speed sensor ring to the front hub.

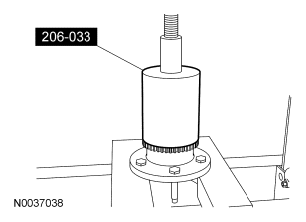

    Fig 1: Installing Front Wheel Speed Sensor Ring To Front Hub Using Wheel Speed Sensor Remover/Installer
    G06403282Courtesy of FORD MOTOR CO.
  2. Install the front hub and bearing assembly. For additional information, refer to FRONT SUSPENSION .
