Wheel Speed Sensor Ring - Rear: Installation

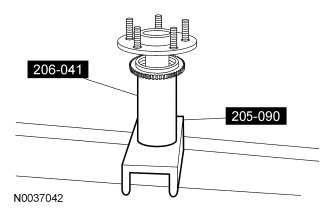

  1. Using the Axle Bearing/Seal Plate and the Wheel Speed Sensor Ring Installer, align the rear anti-lock brake sensor indicator to the rear axle shaft.
    Fig 1: Aligning Rear Anti-Lock Brake Sensor Indicator To Rear Axle Shaft Using Special Tools
    G06403288Courtesy of FORD MOTOR CO.

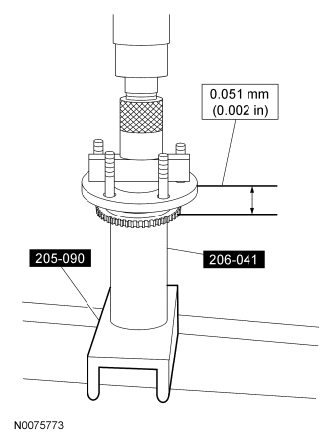

  2. Using the Axle Bearing/Seal Plate and the Wheel Speed Sensor Ring Installer, press the rear anti-lock brake sensor on the rear axle shaft to specification.
    Fig 2: Pressing Rear Anti-Lock Brake Sensor On Rear Axle Shaft Using Axle Bearing/Seal Plate And Wheel Speed Sensor Ring Installer
    G06403289Courtesy of FORD MOTOR CO.
  3. Install the rear axle shaft. For additional information, refer to REAR DRIVE AXLE/DIFFERENTIAL - FORD 8.8-INCH RING GEAR .
