Anti-Lock Brake System (ABS) Module: Notes

SPECIAL TOOLS

Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

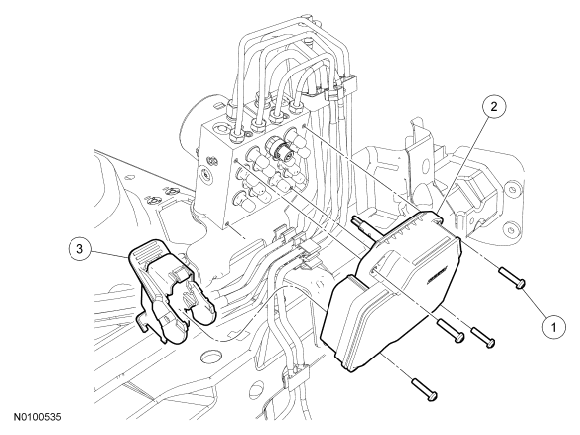

Fig 1: Identifying Anti-Lock Brake System Module, Electrical Connector And Screws

Courtesy of FORD MOTOR CO.

PART DESCRIPTION

Item	Part Number	Description
1	-	ABS module screw (4 required) (part of 2C219 and 2C215 service kits)
2	2C219	ABS module
3	-	ABS module electrical connector (part of 14A005)
