Tie Rod - Outer: Notes

SPECIAL TOOLS

G06256011
 Adapter for 204-592
204-592/1
G06256012
 Separator, Ball Joint
204-592

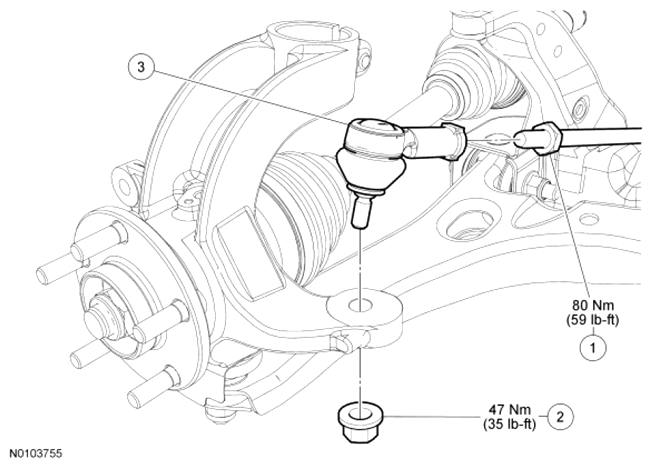

Fig 1: Identifying Outer Tie Rod Replacement Components With Torque Specifications
G07495315Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W520606 Tie-rod jam nut
2 W520203 Outer tie-rod end nut
3 3A130 Outer tie-rod end
