Module Communications Network: Notes

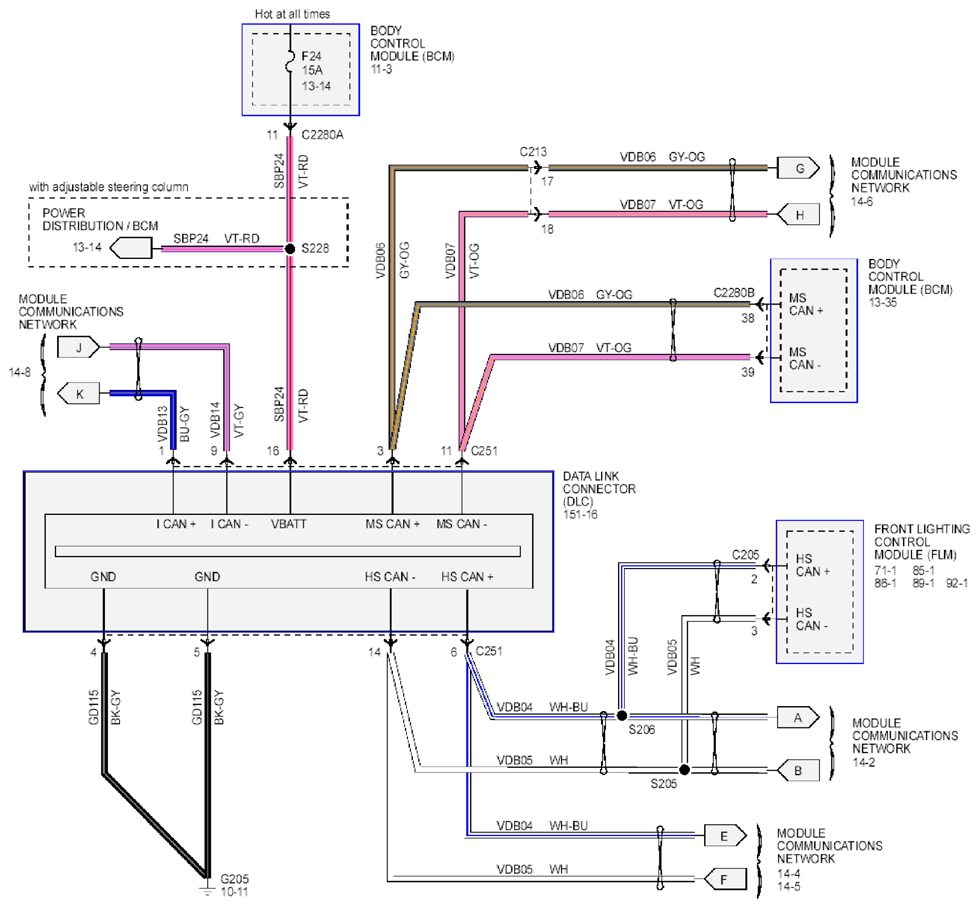

Fig 1: Module Communications Network - Wiring Diagram (1 Of 3)
G09219592Courtesy of FORD MOTOR CO.

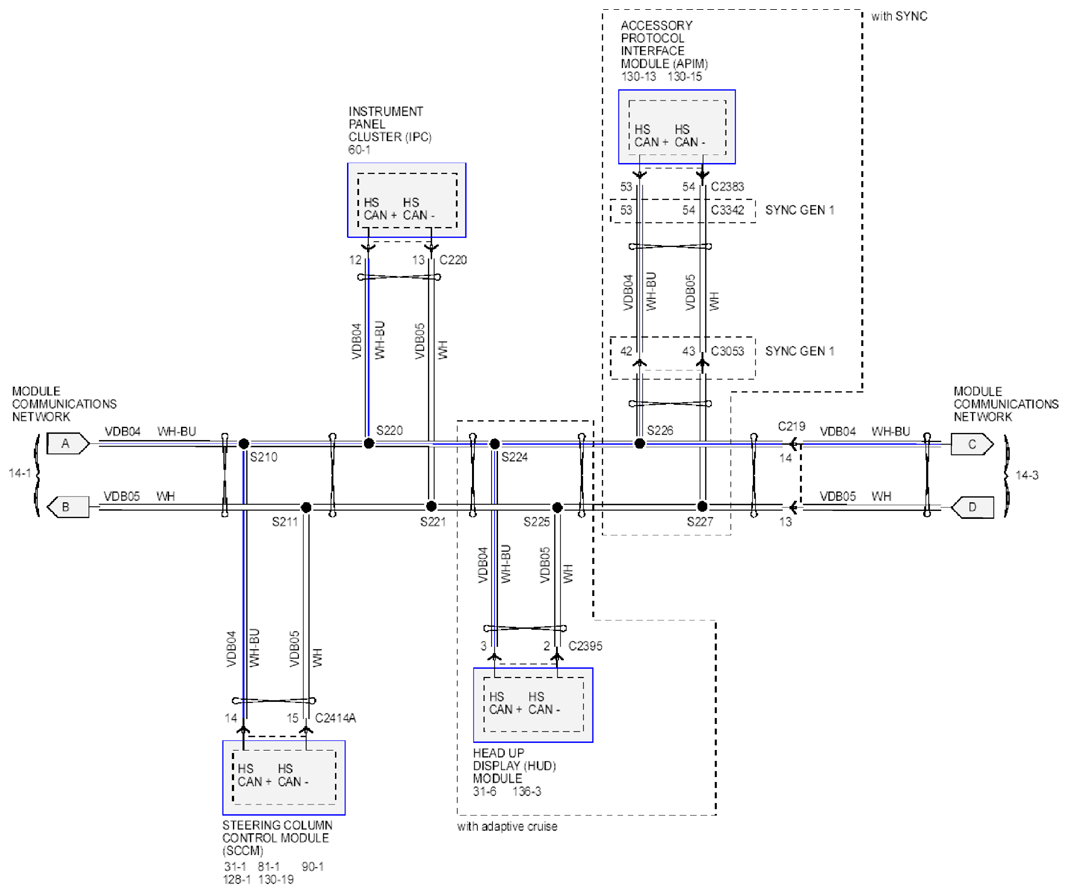

Fig 2: Module Communications Network - Wiring Diagram (2 Of 3)
G09219593Courtesy of FORD MOTOR CO.

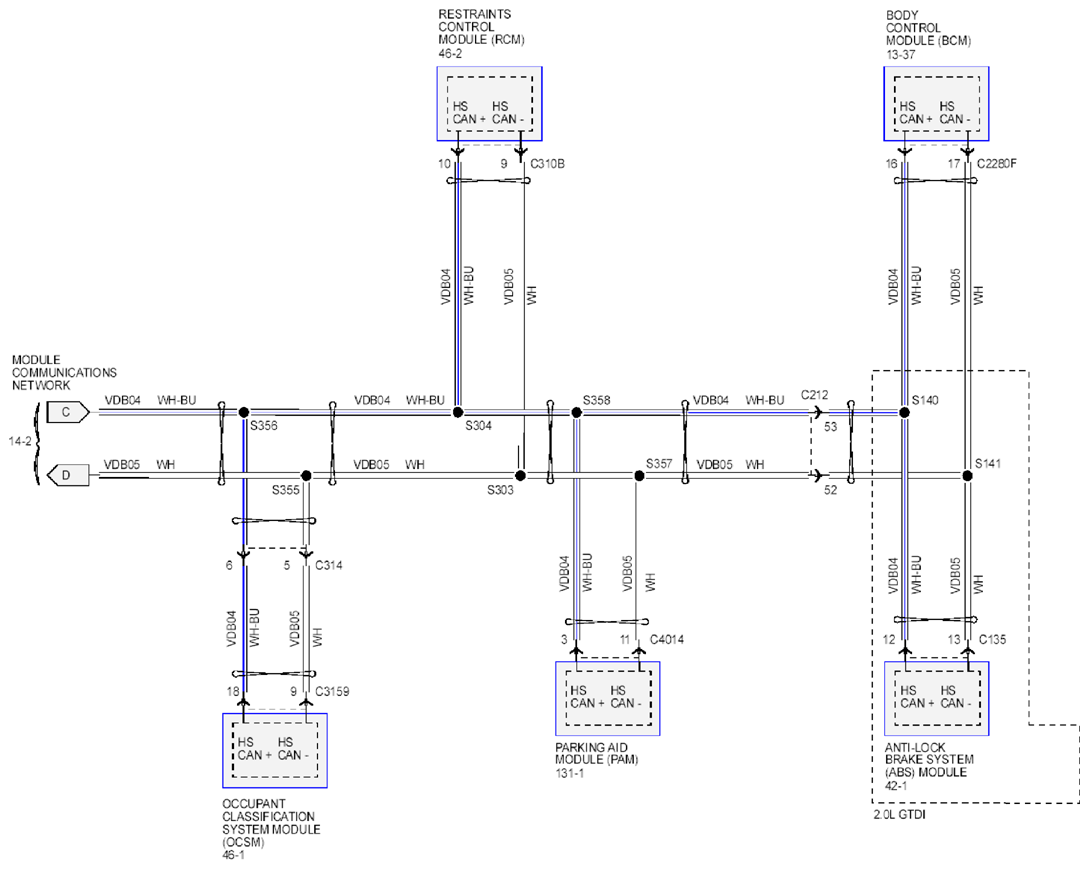

Fig 3: Module Communications Network - Wiring Diagram (3 Of 3)
G09219594Courtesy of FORD MOTOR CO.
