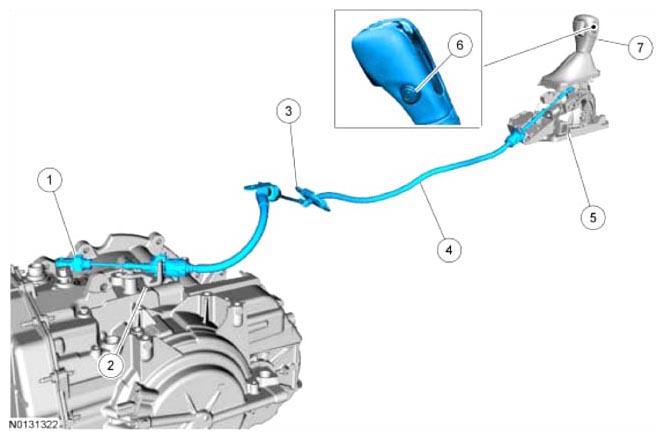

External Controls: 6F35
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Adjuster locking tab (part of 7E395) |
| 2 | 7B229 | Selector lever cable bracket |
| 3 | - | Selector lever cable grommet (part of 7E395) |
| 4 | 7E395 | Selector lever cable |
| 5 | 7210 | Selector lever assembly |
| 6 | - | TCS (part of 7213) |
| 7 | 7213 | Selector lever knob |
The transmission selector lever linkage consists of:
- a selector lever cable that connects the transmission manual control lever to the selector lever assembly.
- a BSIA that is integral to the selector lever assembly.
- a TCS that turns off the operation of 6th gear.
The selector lever assembly:
- locks the transmission selector lever in the PARK position when the ignition switch is in the LOCK position.
- requires the transmission selector lever to be in the PARK position to turn the ignition switch to the LOCK position.
