Window Control Switch - Without Door Modules: Schematic

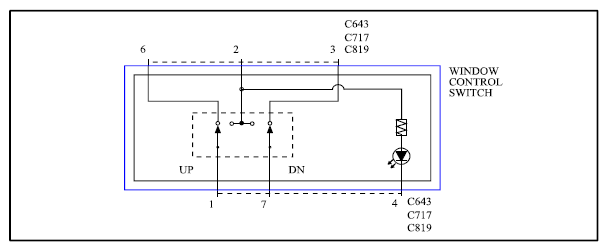

Fig 1: Window Control Switch Schematic - Without Door Modules
G09222851Courtesy of FORD MOTOR CO.
