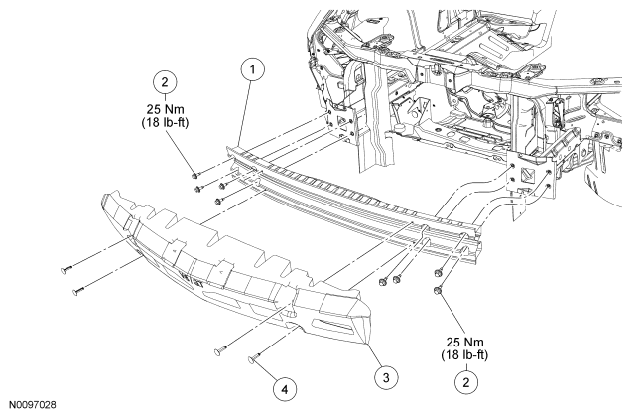

Bumper - Front: Notes
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
17757 |
Front bumper |
| 2 |
W711457 |
Front bumper bolts (8 required) |
| 3 |
17E898 |
Front bumper isolator |
| 4 |
54310D12 |
Front bumper isolator pin-type retainer (4 required) |
