Description and Operation: Description

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

Inhibitor Switch monitors the lever's position (P, R, N, D) and is used to control gear setting signals.

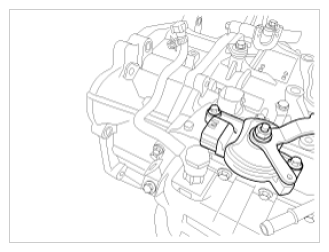

Fig 1: Identifying Inhibitor Switch
G09886277Courtesy of HYUNDAI MOTOR AMERICA
