Signal Waveform

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

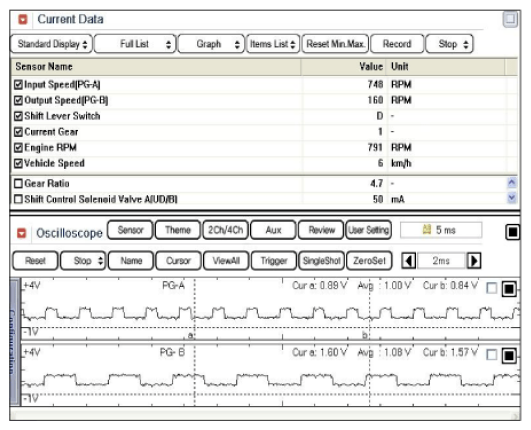

Fig 1: Display - Input/Output Speed Sensor At Low Speed Screen

Courtesy of HYUNDAI MOTOR AMERICA

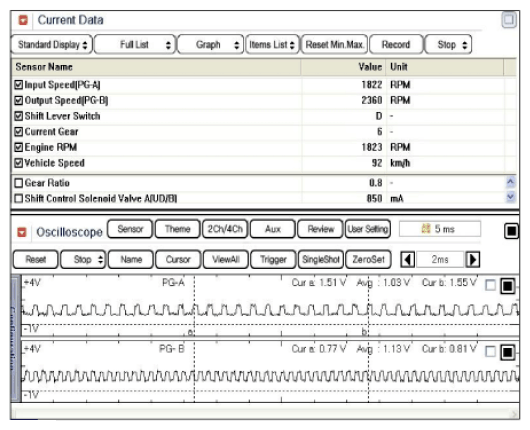

Fig 2: Display - Input/Output Speed Sensor At High Speed Screen

Courtesy of HYUNDAI MOTOR AMERICA
