Adjusting method for T/M control cable
WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.
- Make sure vehicle does not roll before setting room side shift lever and T/M side manual control lever to "N" position.

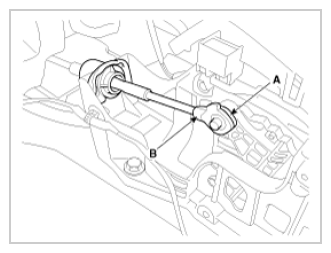

- Connect room side lever (A) and control cable (B).

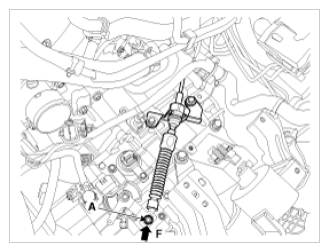

- Push cable to "F" direction as illustrated to eliminate FREE PLAY.
- Tighten adjusting nut (A).
Tightening torque: 9.8 ~ 13.7 N.m (1.0 ~ 1.4 kgf.m, 7.2 ~ 10.1 lb-ft)
- After adjusting, check to be sure that this part operates as designed at each range of T/M side corresponding to each position of room lever.
