Repair procedures: Removal

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

Remove the floor console assembly.
(Refer to "FLOOR CONSOLE ASSEMBLY ")
Remove the control cable (A).

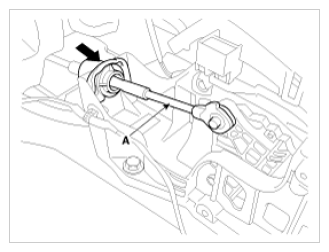

Fig 1: Identifying Control Cable
Courtesy of HYUNDAI MOTOR AMERICA
Remove the main crash pad.
(Refer to "MAIN CRASH PAD ASSEMBLY ")
Remove the heater unit.
(Refer to "HEATER UNIT ")
Remove the retainer (A) and nuts (B).
Tightening torque: 9.8 ~ 14.7 N.m (1.0 ~ 1.5 kgf.m, 7.2 ~ 10.8 lb-ft)

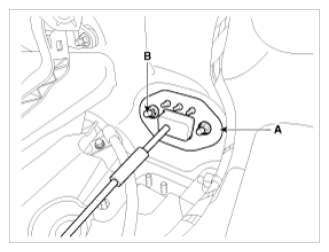

Fig 2: Identifying Retainer And Nuts
Courtesy of HYUNDAI MOTOR AMERICA
Remove the nut (C).
Tightening torque: 9.8 ~ 13.7 N.m (1.0 ~ 1.4 kgf.m, 7.2 ~ 10.1 lb-ft)
Remove the cable (B) from the bracket (A) at transaxle assembly side.

Fig 3: Identifying Cable From Bracket At Transaxle Assembly Side
Courtesy of HYUNDAI MOTOR AMERICA
Remove the control cable inside of cab.
