Repair procedures: Replacement

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch OFF.
  2. Disconnect the negative (-) battery cable.
  3. Disconnect the TCM connector (A).

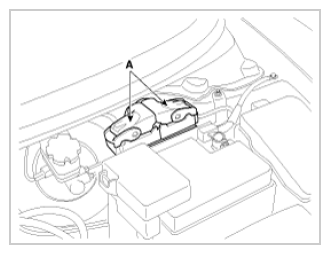

    Fig 1: Identifying TCM Connector
    G09886212Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the TCM (A) after removing the bolt and nut.

    TCM installation bolt/nut:  9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

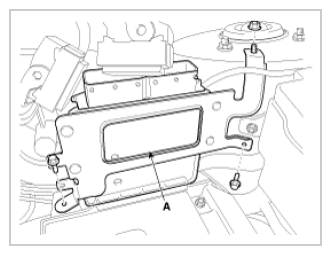

    Fig 2: Identifying Transaxle Control Module
    G09886213Courtesy of HYUNDAI MOTOR AMERICA
