Circuit Diagram

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

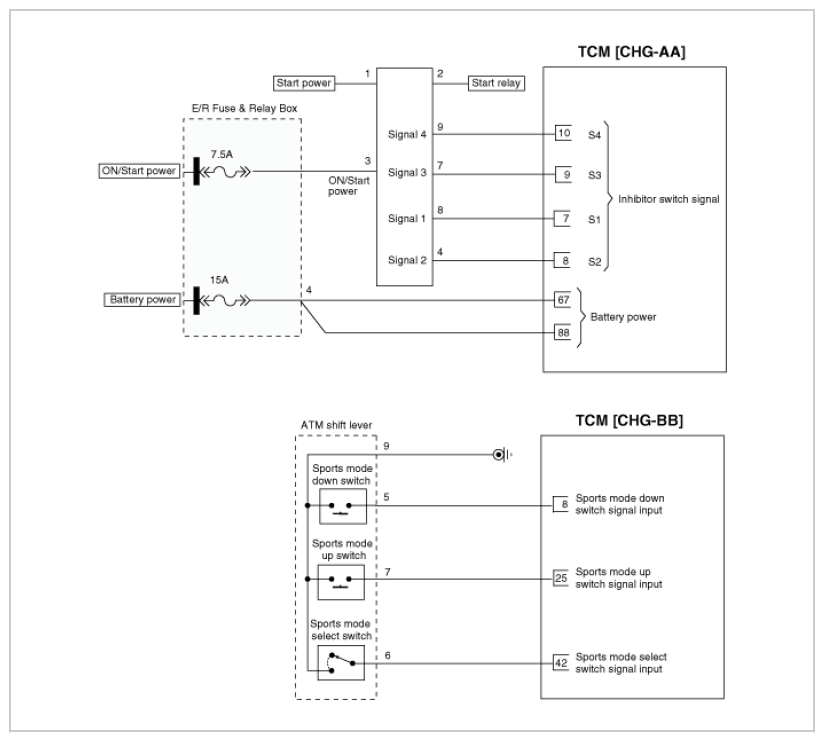

Fig 1: TCM - Circuit Diagram (1 Of 2)
G09886210Courtesy of HYUNDAI MOTOR AMERICA

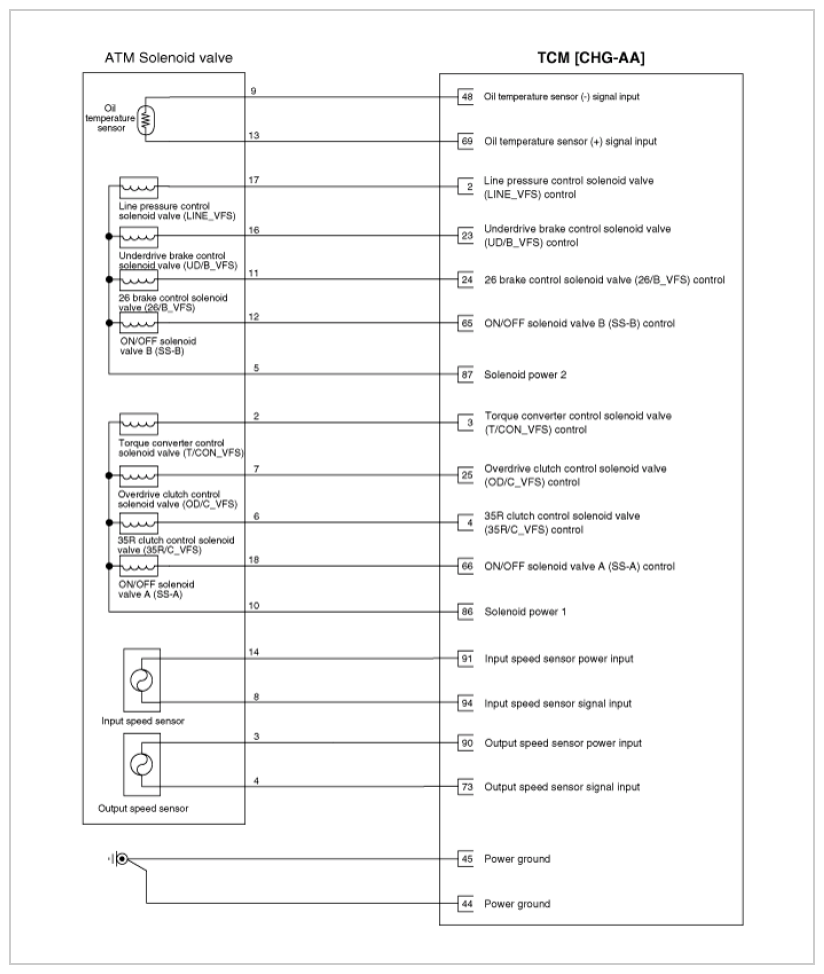

Fig 2: TCM - Circuit Diagram (2 Of 2)
G09886211Courtesy of HYUNDAI MOTOR AMERICA
