Repair procedures: Removal

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery cable.
Remove the air cleaner assembly and air duct.
(Refer to "AIR CLEANER ")
Remove the under cover (A).
Tightening torque: 6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft))

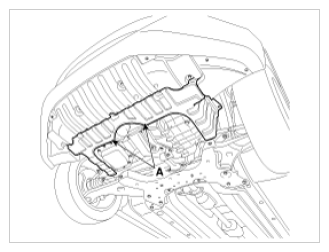

Fig 1: Identifying Under Cover
Courtesy of HYUNDAI MOTOR AMERICA
Replace new gasket and the plug after draining the automatic transaxle fluid by removing the drain plug.
(Refer to "FLUID ")
Remove the air breather hose (A).
Remove the valve body cover (B).
Tightening torque: 13.7 ~ 15.7 N.m (1.4 ~ 1.6 kgf.m, 10.8 ~ 11.6 lb-ft)

Fig 2: Identifying Air Breather Hose And Valve Body Cover
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the oil temperature sensor connector (A).

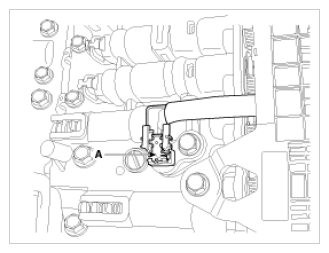

Fig 3: Identifying Oil Temperature Sensor Connector
Courtesy of HYUNDAI MOTOR AMERICA
Remove the oil temperature sensor (A) after removing a bolt.
Tightening torque: 9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

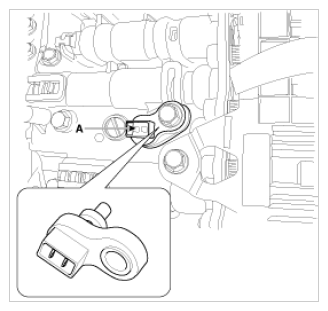

Fig 4: Identifying Oil Temperature Sensor
Courtesy of HYUNDAI MOTOR AMERICA
