Transfer Case

All vehicles

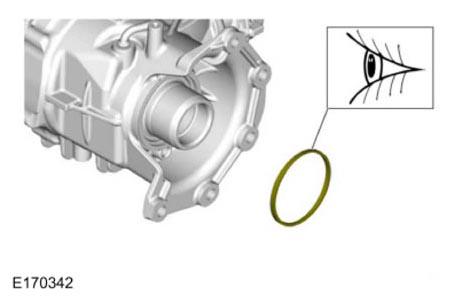

1. Inspect and replace the o-ring seal if damaged.

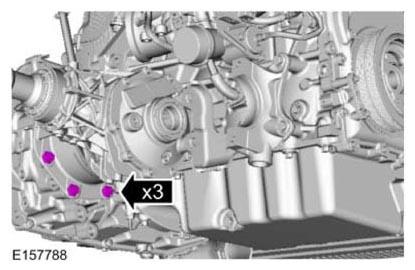

3. Torque  : 46 lb.ft (63 Nm)
4. Torque  : 46 lb.ft (63 Nm)

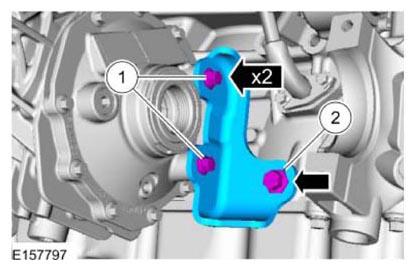

5. Torque  :
   1. 18 lb.ft (25 Nm)
   2. 46 lb.ft (63 Nm)
7. Refer to: FRONT HALFSHAFT RH .

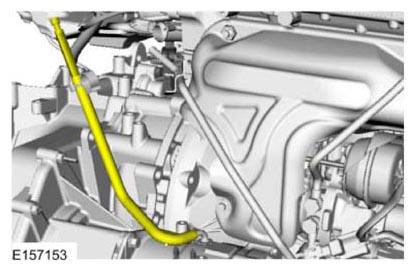

8. Torque  : 97 lb.in (11 Nm)

   2.0L

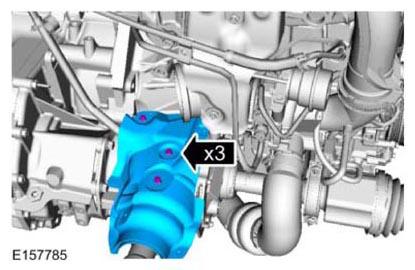

9. Refer to: CATALYTIC CONVERTER .

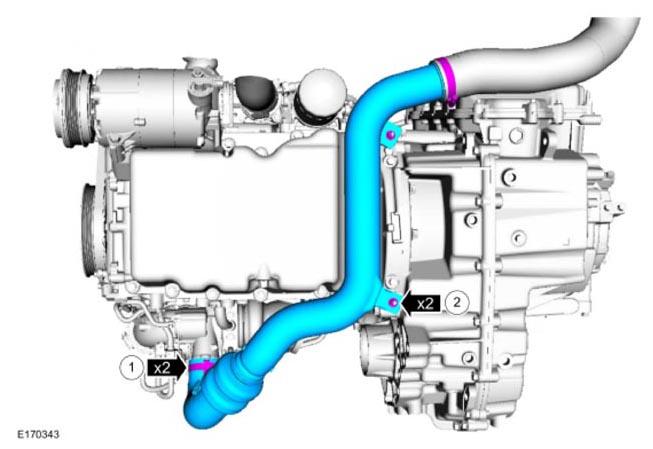

10. Torque  :
    1. 44 lb.in (5 Nm)
    2. 97 lb.in (11 Nm)

    1.6L

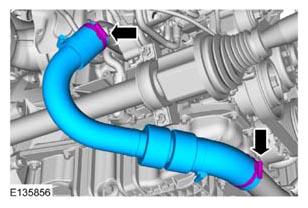

11. Torque  : 44 lb.in (5 Nm)

    All vehicles

12. Refer to: REAR DRIVESHAFT .
13. Refer to: TRANSFER CASE FLUID LEVEL CHECK .
