Powertrain Control Module (PCM): Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
TOOL DESCRIPTION
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool |

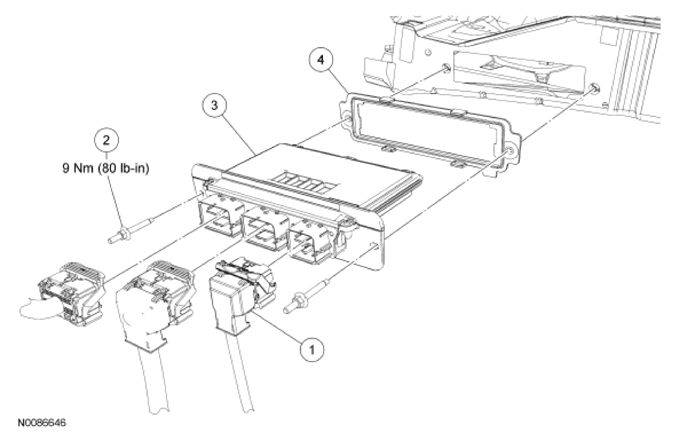

| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | PCM electrical connector (3 required) |
| 2 | W711897 | PCM stud (2 required) |
| 3 | 12A630 | PCM |
| 4 | 12A696 | PCM gasket |
