Selector Lever Mechanism: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

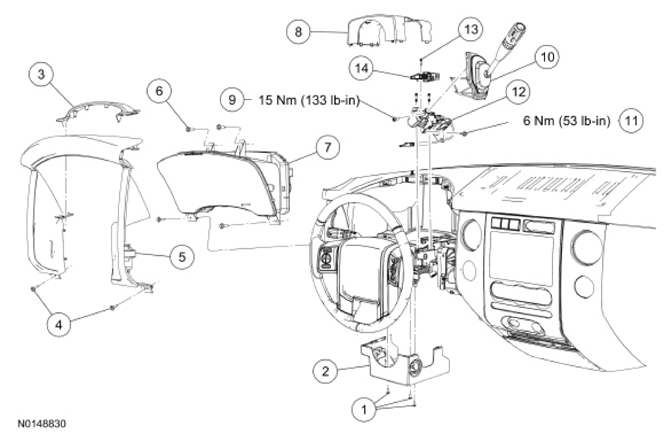

| Item | Part Number | Description |
|---|---|---|
| 1 | W710485-S | Lower steering column shroud screws |
| 2 | 3533-B | Lower steering column shroud |
| 3 | 78045C90-A | Instrument Cluster (IC) shroud trim |
| 4 | - | IC trim screws |
| 5 | 78044D70-A | IC trim |
| 6 | - | IC screw (4 required) |
| 7 | 10849-A | IC |
| 8 | 3530-B | Upper steering column shroud |
| 9 | W712000-S | Selector lever bolt |
| 10 | 7202-A | Selector lever |
| 11 | 7J248-A | Selector lever mechanism bolt (3 required) |
| 12 | 3C529-D | Selector lever mechanism |
| 13 | 3F907-A | Brake Shift Interlock Actuator (BSIA) screw |
| 14 | 3F770-A | BSIA |
