Selector Lever Mechanism - Column Shift: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

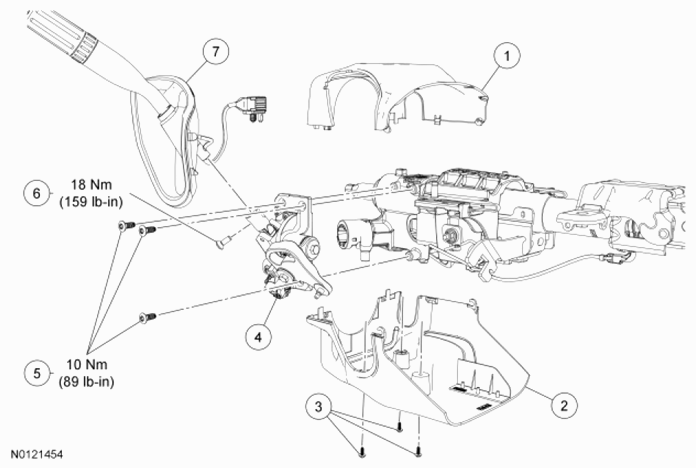

Fig 1: Exploded View Of Selector Lever Mechanism With Torque Specifications (Column Shift)
G07412464Courtesy of FORD MOTOR CO.
Item Part Number Description
1 3530 Upper steering column shroud
2 3530 Lower steering column shroud
3 W710485 Lower steering column shroud screws (3 required)
4 7210B Selector lever mechanism
5 W790181 Selector lever mechanism bolts (3 required)
6 - Selector lever bolt (part of 7210A)
7 7210A Selector lever
