Front Wheel Speed Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: WHEEL AND TIRE .

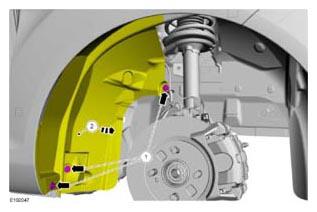

  2. G07978140

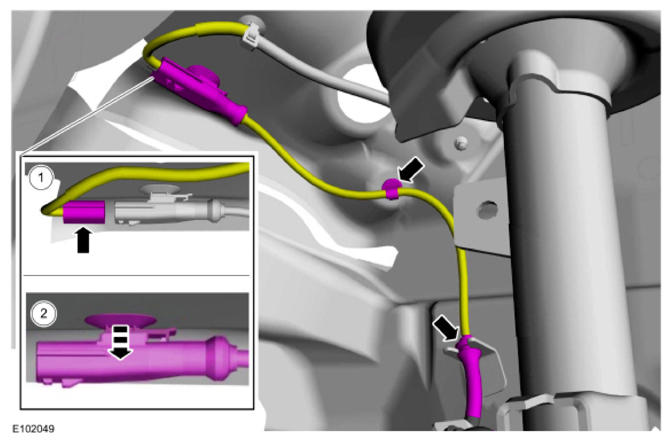

  3. G09548412

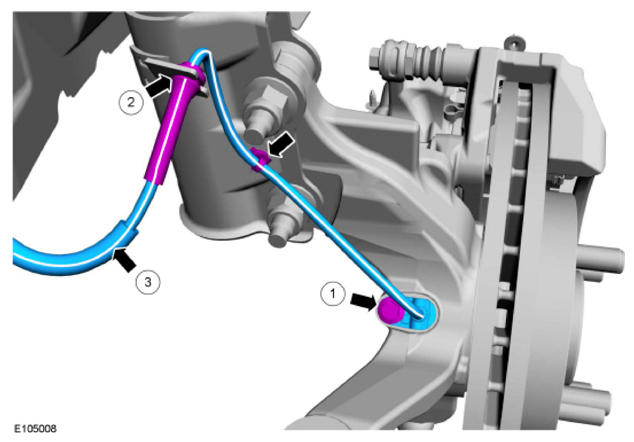

  4. G09548413
    1. NOTE: Make sure that the sensor housing is clean and free of foreign material.

      Torque:  80 lb.in (9 Nm)

    2. NOTE: Note the position of the component before removal.
    3. NOTE: Make sure the alignment line is not twisted.
