Selector Lever: Installation

    • Tighten to 11 Nm (97 lb-in).

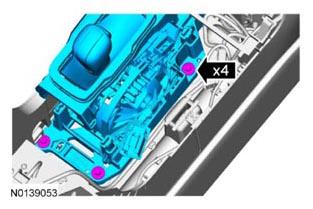

      G08616283

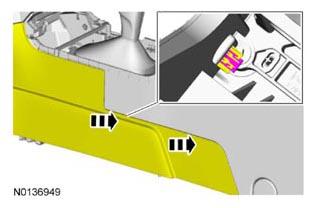

  2. G08616285
  3. G08616281

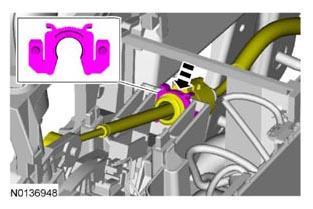

  4. G08616287

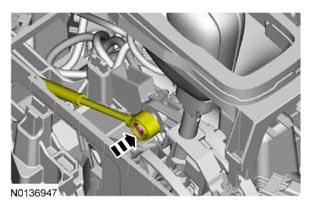

  5. G08616288
  6. G08616237
  7. G08616238
  8. G08616239
  9. Adjust the selector lever when a new selector lever is installed. Refer to SELECTOR LEVER CABLE ADJUSTMENT .
