A/C Compressor - 3.7L
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

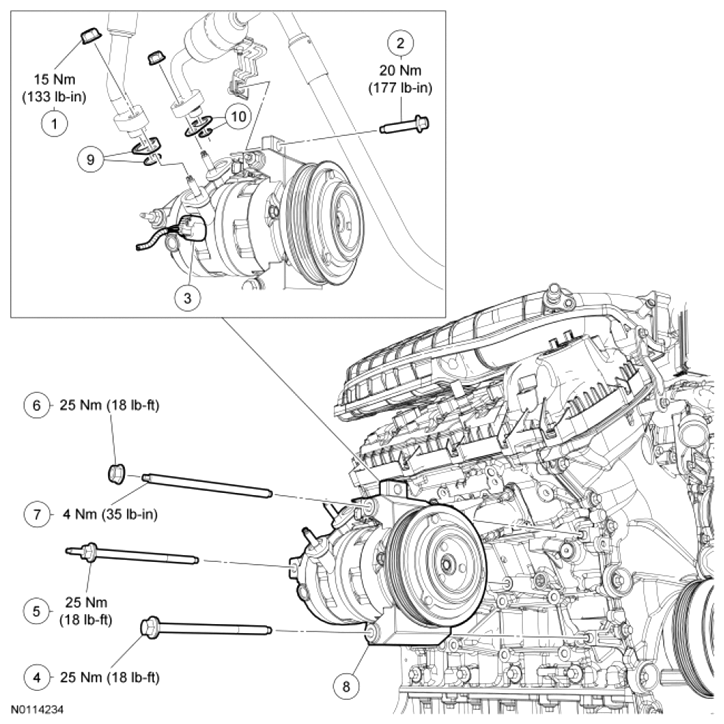

| Item | Part Number | Description |
|---|---|---|
| 1 | W520413 | A/C compressor fitting nut (2 required) |
| 2 | W500310 | Compressor-to-condenser discharge line bracket bolt |
| 3 | - | A/C clutch field coil electrical connector (part of 12B637) |
| 4 | W714373 | A/C compressor bolt |
| 5 | W714820 | A/C compressor bolt |
| 6 | W520413 | A/C compressor nut |
| 7 | W711926 | A/C compressor stud |
| 8 | 19703 | A/C compressor |
| 9 | 19B596 | O-ring seal and gasket seal kit |
| 10 | 19B596 | O-ring seal and gasket seal kit |
