Pinpoint Test QA: Unable To Activate Self-Test/Network Communication Error: Introduction

WARNING: TO PREVENT THE RISK OF HIGH-VOLTAGE SHOCK, ALWAYS FOLLOW PRECISELY ALL WARNINGS AND SERVICE INSTRUCTIONS, INCLUDING INSTRUCTIONS TO DEPOWER THE SYSTEM. THE HIGH-VOLTAGE SYSTEM UTILIZES APPROXIMATELY 300 VOLTS DC, PROVIDED THROUGH HIGH-VOLTAGE CABLES TO ITS COMPONENTS AND MODULES. THE HIGH-VOLTAGE CABLES AND WIRING ARE IDENTIFIED BY ORANGE HARNESS TAPE OR ORANGE WIRE COVERING. ALL HIGH-VOLTAGE COMPONENTS ARE MARKED WITH HIGH-VOLTAGE WARNING LABELS WITH A HIGH-VOLTAGE SYMBOL. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN SERIOUS PERSONAL INJURY OR DEATH.

This pinpoint test is intended to diagnose the following:

unable to communicate with the powertrain control module (PCM)
incorrect self-test procedure
harness circuits: B+, ETCREF, GND, ISP-R, PWRGND and VPWR

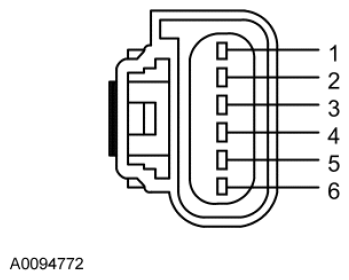

Fig 1: Identifying Electronic Throttle Body Connector Terminals
Courtesy of FORD MOTOR CO.

Pin	Circuit
4	ETCRTN (Electronic Throttle Control Return)
5	ETCREF (Electronic Throttle Control Reference Voltage)

Fig 2: Identifying Powertrain Control Module Connector Terminals

Courtesy of FORD MOTOR CO.

Pin	Circuit
B35, B36, B47, B48, T31	PWRGND (Power Ground)
B11, B12	VPWR (Vehicle Power)
B1	PCMRC (PCM Relay Control)
B8	ISP-R (Ignition Switch Position Run)
