3.7L TIVCT Taurus

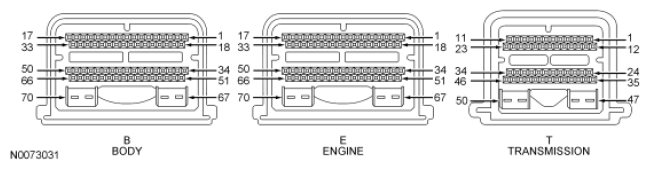

Fig 1: Identifying Engine, Body And Transmission Connector Terminals (3.7L TIVCT Taurus)
G09137591Courtesy of FORD MOTOR CO.
SENSORS/INPUTS - 3.7L TIVCT TAURUS

Sensors/Inputs PCM Pin/PID Only Measured/PID Values Units Measured/PID
KOEO Hot Idle 48 KM/H (30 MPH) 89 KM/H (55 MPH)
BOO1 B13 OFF OFF OFF OFF ON/OFF
AAT B17 19 (66.20) 18 (64.40) 20 (68) 19 (66.20) DEG C (DEG F)
AAT_V B17 3.05 3.06 2.97 3.02 VOLTS
APP1 B28 0.75 0.75 1.05 1.20 VOLTS
APP2 B29 0.37 0.37 0.53 0.60 VOLTS
FPM B32 60.31 59.67 59.67 60.31 %
MAF B40 0 3.52 11.78 29.37 g/s/kHz
MAF_HZ B40 0.70 1.72 2.96 4.23 kHz
BOO2 B46 OFF OFF OFF OFF ON/OFF
IAT B47 2.81/28 (82.40) 3/24 (75.20) 3.25/19 (66.20) 3.21/20 (68) VOLTS/DEG C (DEG F)
B+ B62 12.16 14.27 14.27 14.22 VOLTS
FTP B65 2.66/0.07 (0.01) 2.66/0.07 (0.01) 2.39/-0.34 (-0.05) 1.72/-1.59 (-0.23) VOLTS/kPa (PSI)
FTP_H2O B65 0.28 0.28 -1.59 -6.34 in-H2 O
O2S11_CUR E23 (I) switching (C) switching (C) switching (C) uA
O2S21_CUR E24 (I) switching (C) switching (C) switching (C) uA
CHT E39 0.67/85 (185) 0.66/86 (186.80) 3.44/94 (201.20) 3.72/87 (188.60) VOLTS/DEG C (DEG F)
TP1 E41 4.10/17.64 4.32/13.33 4.20/15.68 4.12/17.25 VOLTS/%
KNOCK_1 E43 170 174 172 237 N/A
TP2 E58 1.21/23.92 0.76/15.29 1/20 1.16/23.13 VOLTS/%
KNOCK_2 E60 224 200 200 202 N/A
O2S12 T29 0.94 0.93 0.65 0.67 VOLTS
O2S22 T40 0.93 0.93 0.23 0.70 VOLTS
HTRCM22 T48 0 622 634 634 mA
HTRCM12 T49 0 630 634 634 mA
AC_REQ PID NO NO NO NO YES/NO
APP PID 0 0 8.50 13.50 %
APP_MAXDIFF PID 0 0 0 0 DEG
APP_MODE PID NO PEDAL NO PEDAL PART PEDAL PART PEDAL NO PEDAL/PART PEDAL
APP1 (APP_D) PID 14.90 14.90 20.78 23.92 %
APP2 (APP_E) PID 7.45 7.45 10.58 11.76 %
BARO PID 92.94 (13.48)/150.62/373.36 92.94 (13.48)/150.62/373.36 92.94 (13.48)/150.62/373.36 93.98 (13.63)/151.53/377.37 kPa (PSI)/Hz/in-H2 O
BRKOVR_ACTION PID 0 0 0 0 NUMERIC VALUE
BRKOVRD_POSS PID 8 8 9 9 NUMERIC VALUE
DECHOKE PID YES NO NO NO YES/NO
DIST_BRKOVRD PID 10.99 (6.83) 10.99 (6.83) 10.99 (6.83) 12.49 (7.76) KM (MILES)
EONV_RDY PID NOT READY NOT READY NOT READY NOT READY READY/NOT READY
EQ_RAT11 PID 0/0:1 1/14.68:1 1.02/14.86:1 1.01/14.72:1 RATIO
EQ_RAT21 PID 0/0:1 1.01/14.71:1 0.98/14.28:1 1/14.57:1 RATIO
ETC_ACT PID 9.80 1.96 9.80 10.98 DEG
ETC_TRIM PID 0.04 0.15 0.34 0.34 DEG
FF_INF PID 9.80 9.80 9.80 9.80 %
FF_LRND PID NO NO YES YES YES/NO
FLI PID 52.54 51.76 43.92 49.02 %
IACKAM2 PID -0.14 -0.10 -0.56 -0.56 NUMERIC VALUE
INJPWR_M PID 12.30 14.18 14.20 14.18 VOLTS
LOAD PID 0 36.07 42.35 72.54 %
MISFIRE PID NO NO NO NO YES/NO
MP_LRN PID YES YES YES YES YES/NO
NUM_MISFIRE PID 0 0 0 0 COUNT
O2S11_IMPED PID 5 0.09 0.09 0.09 VOLTS
O2S11_READY PID NO YES YES YES YES/NO
O2S11_TR PID 29.40 29.40 29.40 29.40 Kohm
O2S21_IMPED PID 5 0.09 0.09 0.09 VOLTS
O2S21_READY PID NO YES YES YES YES/NO
O2S21_TR PID 23.60 23.60 23.60 23.60 Kohm
RPM PID 0 595.75 1343 1668.50 RPM
SYNC PID YES YES YES YES YES/NO
TP1_LRN_TRIM PID 6.87 6.87 6.87 6.87 DEG
TP2_LRN_TRIM PID 7 7 7 7 DEG
TPMODE PID PT CT PT PT CLOSED/PART/WIDE OPEN THROTTLE
VCT_EXH_ACT1 PID 0 0 17.06 0 DEG
VCT_EXH_ACT2 PID 0 0 17.37 0.68 DEG
VCT_EXH_DIF1 PID 0 0 -1.06 0 DEG
VCT_EXH_DIF2 PID 0 0 -1.25 -0.68 DEG
VCT_INT_ACT1 PID 0 0 -0.18 -33.93 DEG
VCT_INT_ACT2 PID 0 -0.06 -9.93 -34.06 DEG
VCT_INT_DIF1 PID 0 -0.06 -0.18 -1.06 DEG
VCT_INT_DIF2 PID 0 0.18 -0.18 -0.87 DEG
VCTSYS PID OPEN LOOP CLOSED LOOP CLOSED LOOP CLOSED LOOP OPEN LOOP/CLOSED LOOP
VSS PID 0 0 48 km/h (30 MPH) 89 km/h (55 MPH) km/h/MPH
ACTUATORS/OUTPUTS - 3.7L TIVCT TAURUS

Actuators/Outputs PCM Pin/PID Only Measured/PID Values Units Measured/PID
KOEO Hot Idle 48 KM/H (30 MPH) 89 KM/H (55 MPH)
HFC B18 OFF OFF OFF OFF ON/OFF
FP B19 75/OFF 36.01/ON 36.09/ON 36.05/ON %/ON/OFF
EVAPCV B20 0/OFF 0/OFF 0/OFF 0/OFF %/ON-OFF
LFC B34 OFF OFF ON OFF ON/OFF
VCT_EXH_DC2 E18 0 0 38.26 0 %
EVAPCP E32 0 10.98 21.71 82.93 %
VCT_EXH_DC1 E52 0 0 39.79 0 %
VCT_INT_DC1 E67 0 0 43.65 42.83 %
VCT_INT_DC2 E68 0 0 46.62 45.47 %
HTR11 E69 OFF ON ON ON ON/OFF
O2S11_HTR E69 22.35 39.21 33.72 29.02 %
HTR21 E70 OFF ON ON ON ON/OFF
O2S21_HTR E70 22.35 31.76 32.94 31.76 %
HTR22 T48 OFF ON ON ON ON/OFF
HTR12 T49 OFF ON ON ON ON/OFF
ETC [TAC_PCT] PID         %
EVAP020C PID NO NO NO NO YES/NO
EVAPSOAK PID NO NO NO NO YES/NO
EVAPSTA PID NOT RUNNING NOT RUNNING NOT RUNNING NOT RUNNING STATUS
FUELSYS PID OPEN LOOP CLOSED LOOP OL-DRIVE CLOSED LOOP OPEN/CLOSED LOOP
IACTRIM PID 0 0 0 0 NUMERIC VALUE
LONGFT1 PID (I) -20 TO +20 -20 TO +20 -20 TO +20 %
LONGFT2 PID (I) -20 TO +20 -20 TO +20 -20 TO +20 %
MIL PID OFF OFF OFF OFF ON/OFF
O2_DS_DISBL PID YES YES NO NO YES/NO
RO2FT1 PID 0 -0.89 -1.33 1.68 %
RO2FT2 PID 0 -0.89 -1.35 1.68 %
SHRTFT1 PID (I) -10 TO +10 -10 TO +10 -10 TO +10 %
SHRTFT2 PID (I) -10 TO +10 -10 TO +10 -10 TO +10 %
SPARKADV PID 23.50 13.25 36.50 34 DEG
TQ_CNTRL PID NONE REQUESTED NONE REQUESTED NONE REQUESTED NONE REQUESTED STATUS
OTHER - 3.7L TIVCT TAURUS

Other PCM Pin/PID Only Measured/PID Values Units Measured/PID
KOEO Hot Idle 48 KM/H (30 MPH) 89 KM/H (55 MPH)
VREF B52/B61/B66/E35/E57 5 5 5 5 VOLTS
VPWR B67/B68 VBAT VBAT VBAT VBAT VOLTS
