5.0L TIVCT Mustang

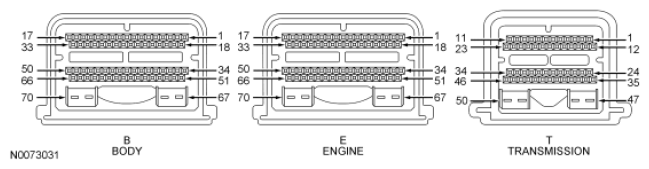

Fig 1: Identifying Engine, Body And Transmission Connector Terminals (5.0L TIVCT Mustang)
G09137593Courtesy of FORD MOTOR CO.
SENSORS/INPUTS - 5.0L TIVCT MUSTANG

Sensors/Inputs PCM Pin/PID Only Measured/PID Values Units Measured/PID
KOEO Hot Idle 48 KM/H (30 MPH) 89 KM/H (55 MPH)
BOO1 B13 OFF OFF OFF OFF ON/OFF
APP1 B28 4.08 4.08 3.7 3.41 VOLTS
APP2 B29 1.43 1.43 1.72 1.94 VOLTS
FPM B32 0 0 0 0 %
ACP B31 OPEN OPEN OPEN OPEN OPEN/CLOSED
MAF B40 0.42 3.96 13.39 25.94 g/s
MAF_HZ B40 0.73 1.17 3.20 3.81 kHz
BOO2 B46 OFF OFF OFF OFF ON/OFF
IAT B47 2.28/37 (98.6) 2.9/24 (75.2) 3.74/4 (39.2) 3.86/0 (32) VOLTS/DEG C (DEG F)
FTP B65 2.61/0.61 2.53/0.61 2.59/0.6 1.5/0.6 VOLTS/PSI
FTP_H2O B65 -0.06 -0.61 -0.24 -7.93 in-H2 O
KNOCK_1 E7 0 69 175 265 N/A
CHT E30 3.59/93 (199.4) 3.57/94 (201.2) 0.73/82 (179.6) 3.56/94 (201.2) VOLTS/DEG C (DEG F)
KNOCK_2 E45 0 81 106 297 N/A
OSS_SRC T14 0 0 1385 2400 RPM
O2S11_CUR T17/T29 (I) switching switching switching VOLTS/RICH-LEAN
O2S12 T18 (I) (D) (D) (D) VOLTS
HTRCM11 T24 1.13 1.13 1.13 1.13 AMPS
O2S22 T27 (I) (D) (D) (D) VOLTS
HTRCM21 T35 1.14 1.14 1.14 1.14 AMPS
O2S21 T39 (I) switching switching switching VOLTS/RICH-LEAN
HTRCM12 T47 707 707 707 707 mA
HTRCM22 T49 703 703 703 703 mA
APP PID 0 0 12.5 22.5 %
BARO PID 14.3/156.2 14.3/156.2 14.3/156.2 14.3/156.2 PSI/Hz
B+ PID 12.69 13-14.5 13-14.5 13-14.5 VOLTS
CPP/PNP PID NEUTRAL NEUTRAL DRIVE DRIVE NEUTRAL/DRIVE
DECHOKE PID YES NO NO NO YES/NO
ETC_TRIM PID 0.1 (J) 0.1 (J) 0.17 (J) 0.17 (J) DEG
FLI PID 0 (H) 64.28 (H) 69.33 (H) 69 (H) %
GEAR PID 1 1 5 5 GEAR
IACKAM2 PID -0.10 -0.10 -0.05 -0.11 NUMERIC VALUE
LOAD PID 48.93 (I) 15.19 17.79 52.08 %
MISFIRE PID NO NO NO NO YES/NO
MP_LRN PID YES YES YES YES YES/NO
O2BANK1 PID VARIES VARIES VARIES VARIES RICH/LEAN
O2BANK2 PID VARIES VARIES VARIES VARIES RICH/LEAN
RPM PID 0 711 1299 1815 RPM
SYNC PID NO YES YES YES YES/NO
VCT_EXH_ACT1 PID 0 0 42.53 0 %
VCT_EXH_ACT2 PID 0 0 42.53 0 %
VCT_EXH_DIF1 PID 0 0 42.53 0 %
VCT_EXH_DIF2 PID 0 0 0 0 %
VCT_INT_ACT1 PID 0 0 42.53 0 %
VCT_INT_ACT2 PID 0 0 42.53 0 %
VSS PID 0 0 48 km/h (30 MPH) 89 km/h (55 MPH) km/h/MPH
ACTUATORS/OUTPUTS - 5.0L TIVCT MUSTANG

Actuators/Outputs PCM Pin/PID Only Measured/PID Values Units Measured/PID
KOEO Hot Idle 48 KM/H (30 MPH) 89 KM/H (55 MPH)
FP B19 75/OFF 21.53/ON 24.31/ON 23.78/ON %/ON/OFF
EVAPCV B20 0/OFF 0/OFF 0/OFF 0/OFF %/ON/OFF
HFC B18 OFF ON (B) OFF OFF ON/OFF
LFC B34 OFF ON (B) OFF OFF ON/OFF
EVAPCP E6 0/OFF 377/VARYING 0/VARYING 533/OFF mA/OFF-VARYING
VCT_EXH_DC1 E56 0 0 42.53 0 %
VCT_EXH_DC2 E57 0 0 42.53 0 %
HTR11 T24 OFF ON ON ON ON/OFF
HTR21 T35 OFF ON ON ON ON/OFF
HTR12 T47 OFF ON ON ON ON/OFF
HTR22 T49 OFF ON ON ON ON/OFF
EGR_EVAL PID YES YES YES YES YES/NO
EVAP020C PID NO YES NO NO YES/NO
EVAPSOAK PID NO YES YES YES YES/NO
EVAPSTA PID NOT RUNNING 6-MONITOR COMPLETE NOT RUNNING NOT RUNNING STATUS
EVAP_EVAL PID YES YES YES YES YES/NO
LONGFT1 PID 0 (I) -2.34 -20 TO +20 -20 TO +20 %
LONGFT2 PID 0 (I) -20 TO +20 -20 TO +20 -20 TO +20 %
MIL PID OFF OFF OFF OFF ON/OFF
SHRTFT1 PID 0 (I) -10 TO +10 -10 TO +10 -10 TO +10 %
SHRTFT2 PID 0 (I) -10 TO +10 -10 TO +10 -10 TO +10 %
SPARKADV PID 10 19.75 34.25 36.75 DEG
OTHER - 5.0L TIVCT MUSTANGS

Other PCM Pin/PID Only Measured/PID Values Units Measured/PID
KOEO Hot Idle 48 KM/H (30 MPH) 89 KM/H (55 MPH)
VREF B52/E20/T31 5 5 5 5 VOLTS
VPWR B67/68 VBAT VBAT VBAT VBAT VOLTS
