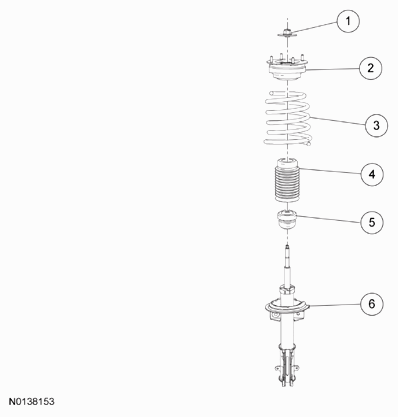

Strut and Spring Assembly: Notes
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W520215 |
Strut rod nut and washer |
| 2 |
18183 |
Upper mount assembly |
| 3 |
5310 |
Spring |
| 4 |
- |
Dust boot (part of 18045) |
| 5 |
- |
Jounce bumper (part of 18045) |
| 6 |
18124 |
Strut |
