Stabilizer Bar: Notes

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

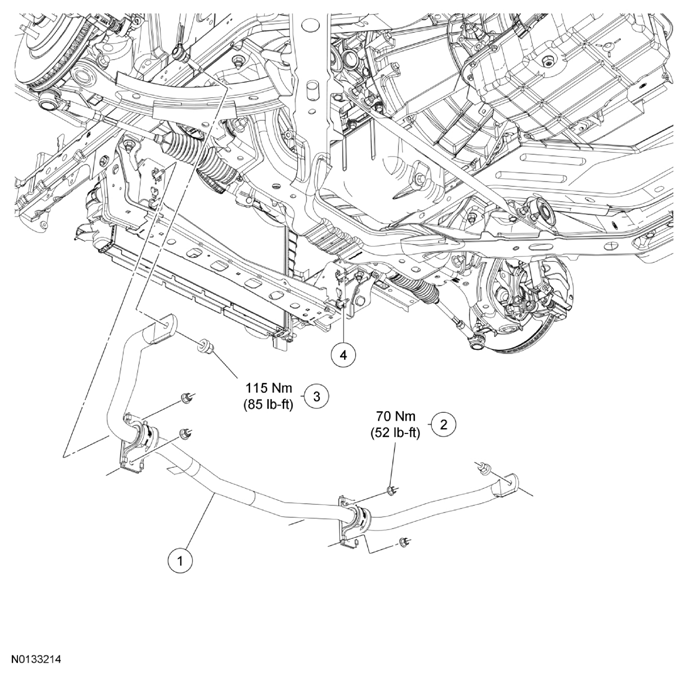

Fig 1: Stabilizer Bar And Related Replacement Components With Torque Specifications
G07985988Courtesy of FORD MOTOR CO.
Item Part Number Description
1 5482 Stabilizer bar
2 W520213 Stabilizer bar bracket nut (4 required)
3 W712503 Stabilizer bar link lower nut (2 required)
4 W715576 Stabilizer bar bracket bolt (4 required)
