Starter Motor - 3.7L: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

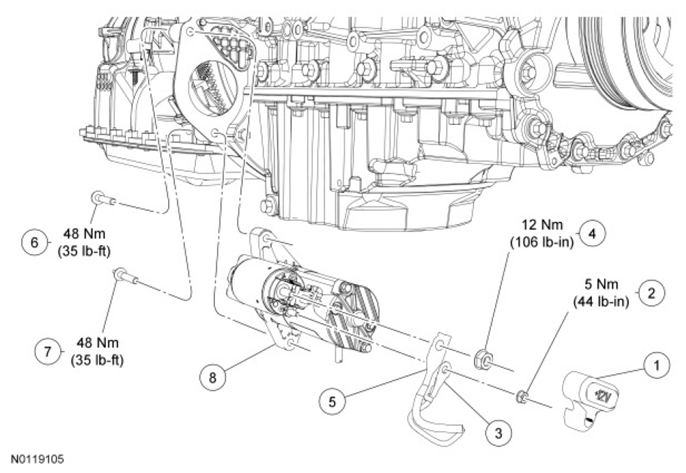

| Item | Part Number | Description |
|---|---|---|
| 1 | 11N087 | Starter solenoid terminal cover |
| 2 | W705790 | Starter solenoid S-terminal nut |
| 3 | 14463 | Starter solenoid S-terminal eyelet |
| 4 | N805403 | Starter solenoid B+ terminal nut |
| 5 | 14463 | Starter solenoid B+ terminal eyelet |
| 6 | W714290 | Starter motor stud bolt (2 required) |
| 7 | 11000 | Starter motor |
