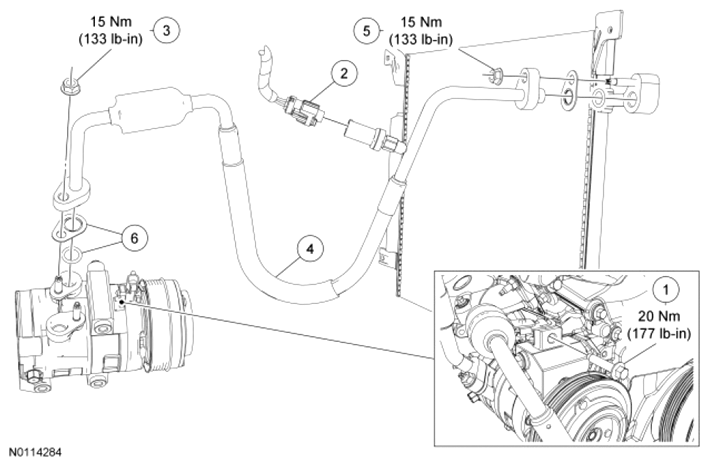

Compressor-to-Condenser Discharge Line
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W500310 | Compressor-to-condenser discharge line bracket bolt (3.7L only) |
| 2 | - | A/C pressure transducer electrical connector (part of 12B637) |
| 3 | W520413 | A/C compressor discharge fitting nut |
| 4 | 19972 | Compressor-to-condenser discharge line |
| 5 | W520413 | Condenser inlet fitting nut |
| 6 | 19B596 | O-ring seal and gasket seal kit (2 required) |
