Front Wheel Speed Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the wheel and tire. Refer to: Wheel and Tire .

2.

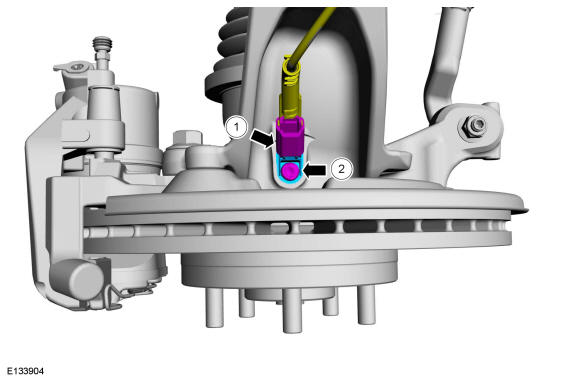

1. 1.

  Disconnect the electrical connector.
1. 2.

  Remove the bolt and the front wheel speed sensor.
  Torque: 42 lb.in (4.8 Nm)

GFD48341

Courtesy of FORD MOTOR COMPANY
