Selector Lever Bezel: Removal

  1. 1.

    NOTE: Removal steps in this procedure may contain installation details.

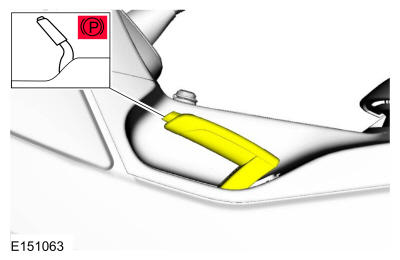

    Fully apply the parking brake.

GFD50450Courtesy of FORD MOTOR COMPANY

  1. 2.

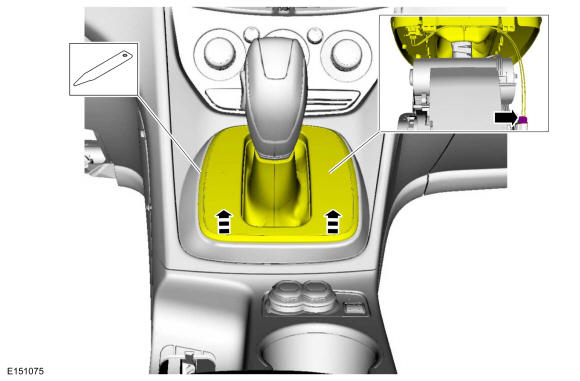

    Lift the selector lever bezel up and disconnect the electrical connector.
GFD50451Courtesy of FORD MOTOR COMPANY

  1. 3.

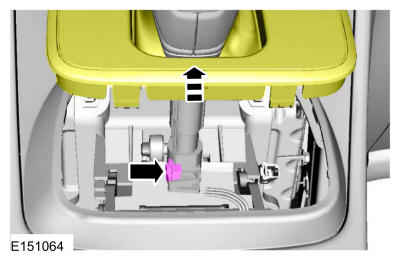

    Disconnect the selectshift switch electrical connector.
GFD50452Courtesy of FORD MOTOR COMPANY

  1. 4.

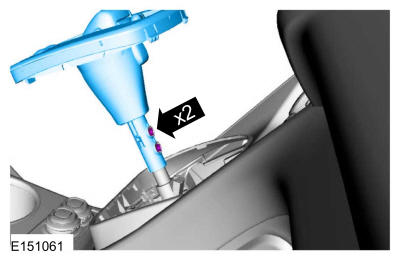

    Remove the screws and the selector lever knob.
GFD50453Courtesy of FORD MOTOR COMPANY

  1. 5.

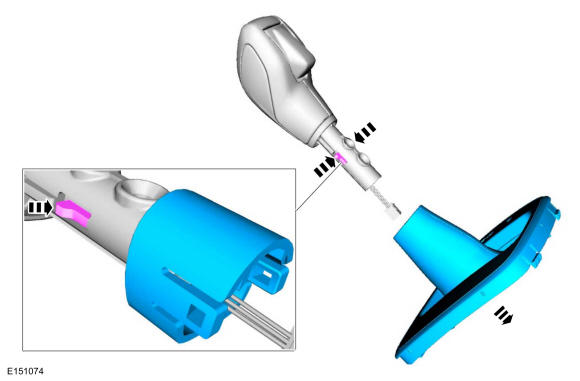

    Release the tabs and remove the selector lever bezel from the selector lever.
GFD50454Courtesy of FORD MOTOR COMPANY
