Electronic Engine Controls

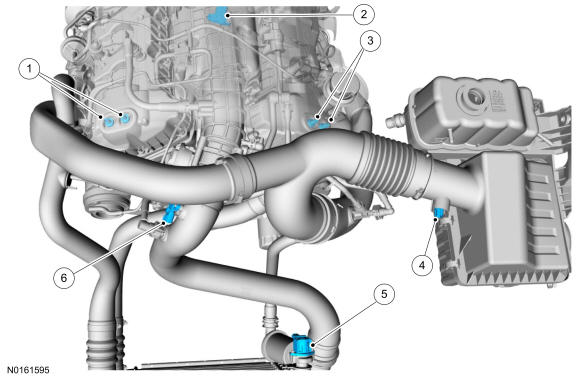

Engine Sensor Locations: Front
| Item | Description |
|---|---|
| 1 | Right Hand (RH) Variable Camshaft Timing (VCT) Oil Control Solenoids |
| 2 | Manifold Absolute Pressure (MAP) /Intake Air Temperature 2 (IAT2) |
| 3 | Left Hand (LH) Variable Camshaft Timing (VCT) Oil Control Solenoids |
| 4 | Intake Air Temperature (IAT) Sensor |
| 5 | Turbocharger Bypass Valve |
| 6 | Turbocharger Boost Pressure(TCBP) /Charge Air Cooler Temperature(CACT) Sensor |

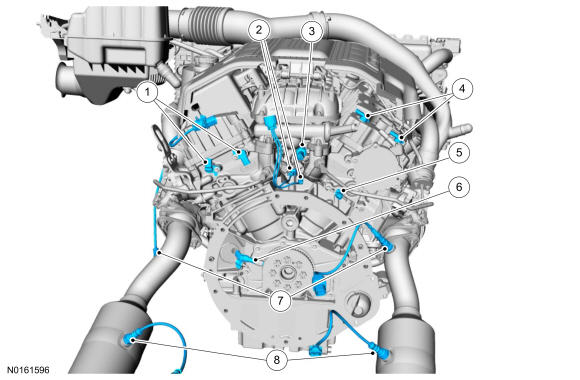

Engine Sensor Locations: Rear
| Item | Description |
|---|---|
| 1 | LH Camshaft Position(CMP) Sensors |
| 2 | Knock Sensor (KS) |
| 3 | Fuel Rail Pressure(FRP) Sensor |
| 4 | RH Camshaft Position(CMP) Sensors |
| 5 | Cylinder Head Temperature (CHT) Sensor |
| 6 | Crankshaft Position (CKP) Sensor |
| 7 | Heated Oxygen Sensor (HO2S) |
| 8 | Catalyst Monitor Sensors |

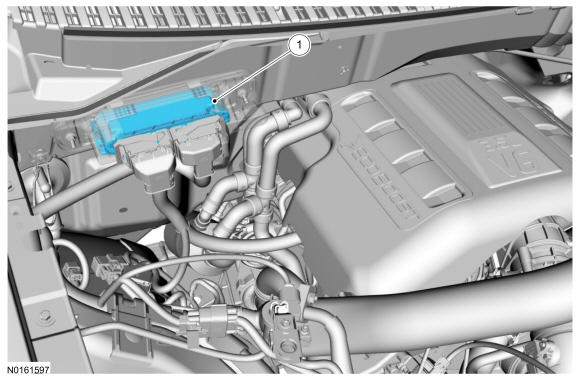

Engine Sensor Locations: Powertrain Control Module (PCM)
| Item | Description |
|---|---|
| 1 | PCM |
Overview
The EEC system provides optimum control of the engine through the enhanced capability of the powertrain control module (PCM). The EEC system also has an on board diagnostic (OBD) monitoring system with features and functions to meet federal regulations on exhaust emissions. The EEC system has two major divisions: hardware and software. The hardware includes the PCM, sensors, switches, actuators, solenoids, and interconnecting terminals. The software in the PCM provides the strategy control for outputs (engine hardware) based on the values of the inputs to the PCM. The PCM receives information from a variety of sensor and switch inputs. Based on the strategy and calibration stored within the PCM, the PCM generates the appropriate output. The system is designed to minimize emissions and optimize fuel economy and driveability. The software strategy controls the basic operation of the engine, provides the OBD strategy, controls the malfunction indicator lamp (MIL), communicates to the scan tool over the data link connector (DLC), allows for flash electrically erasable programmable read only memory (EEPROM), provides idle air and fuel trim, and controls failure mode effects management (FMEM).
System operation and component description
Refer to the ENGINE CONTROLS - DESCRIPTION & OPERATION (EXCEPT DIESEL & HYBRID) .
