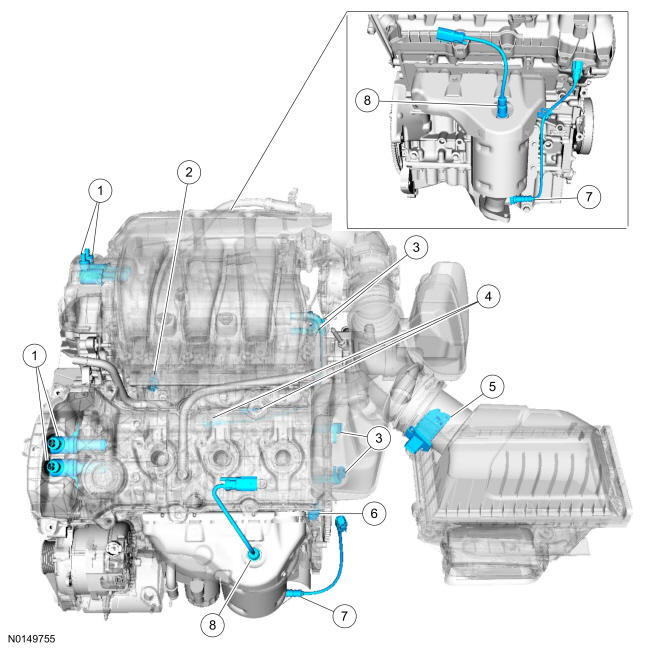

3.5L Ti-VCT Engine Sensor Locations

GFD38070Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 6M280 VCT oil control solenoids
2 6G004 CHT sensor
3 6B288 CMP sensor
4 12A699 KS
5 12B579 MAF sensor
6 6C315 CKP sensor
7 9G444 CMS
8 9F472 HO2S
