Component Locations

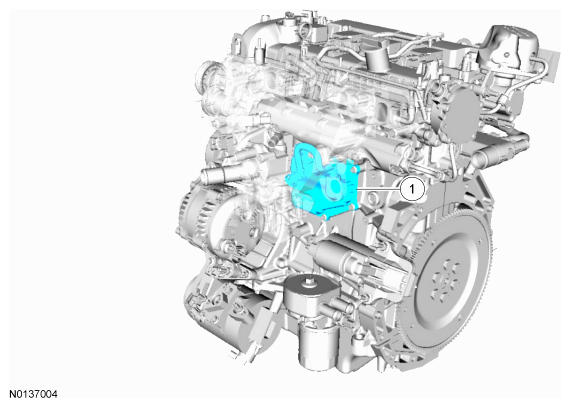

2.0L GTDI

G08660118
Item Description Comments
1 Crankcase vent oil separator -

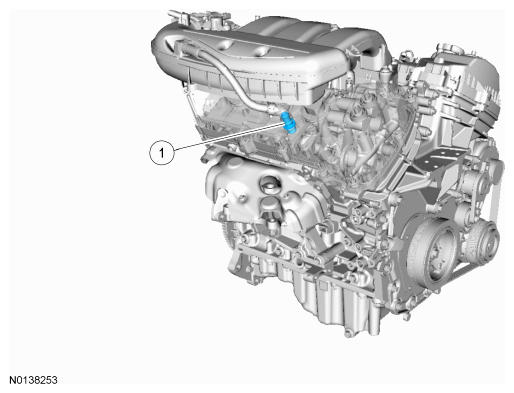

3.5L Ti-VCT

G08660119
Item Description Comments
1 PCV Valve -

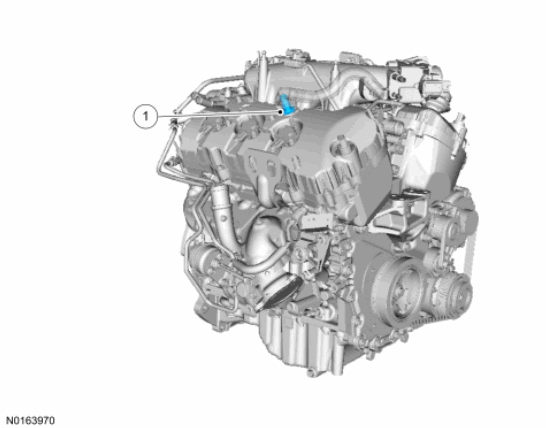

3.5L GTDI

G00560148
Item Description Comments
1 PCV Valve -
