2.0L GTDI Engine Sensor Locations - LH

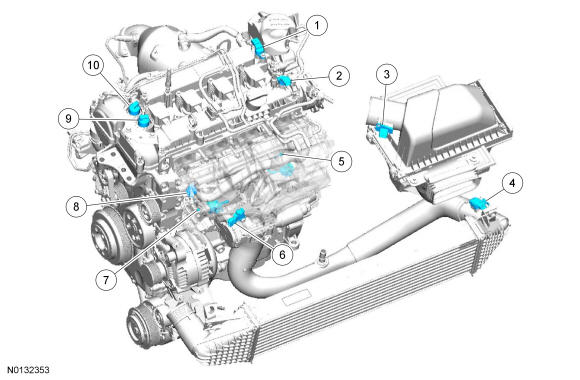

GFD38068Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 12K073 Exhaust CMP sensor
2 12K073 Intake CMP sensor
3 12B579 MAF sensor
4 9F479 TCBP /CAC sensor
5 12A699 LH KS
6 9F479 MAP sensor
7 9F972 FRP sensor
8 12A699 RH KS
9 6M280 Intake VCT oil control solenoid
10 6M280 Exhaust VCT oil control solenoid
