Steering Column Shroud: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

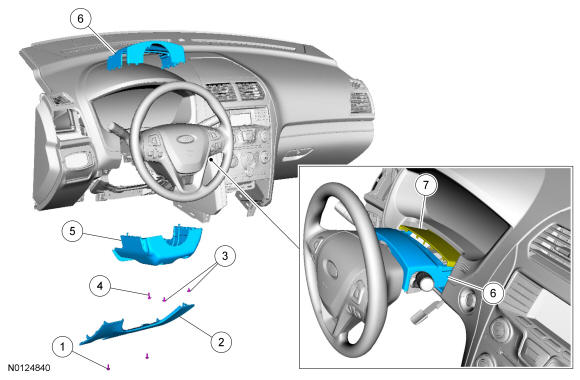

Exploded View
NOTE:
Vehicle without police package shown, vehicle with police package similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | W707628 | Steering column cover trim panel screw (2 required) |
| 2 | 7804459 | Steering column cover trim panel |
| 3 | W713507 | Steering column shroud screws (2 required) |
| 4 | W707628 | Steering column shroud screw |
| 5 | 3530 | Lower steering column shroud |
| 6 | 3530 | Upper steering column shroud |
| 7 | - | IPC opening trim (part of 78044D70) |
