Steering Wheel: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

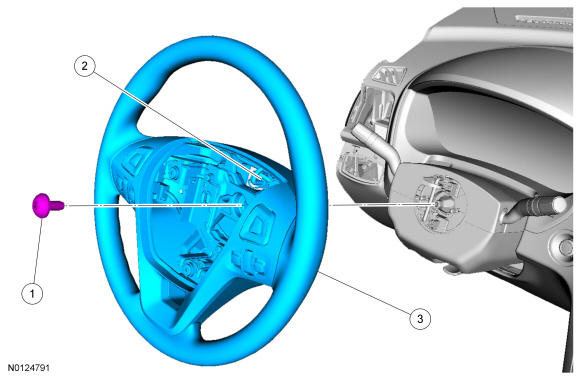

Exploded View
NOTE:
Vehicle without police package shown, vehicle with police package similar.
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | W708887 | Steering wheel bolt | - | - | 48 Nm (35 lb-ft) |
| 2 | - | Steering wheel switches electrical connector (part of 3600) | - | - | - |
| 3 | 3600 | Steering wheel | - | - | - |
