Multifunction Switch

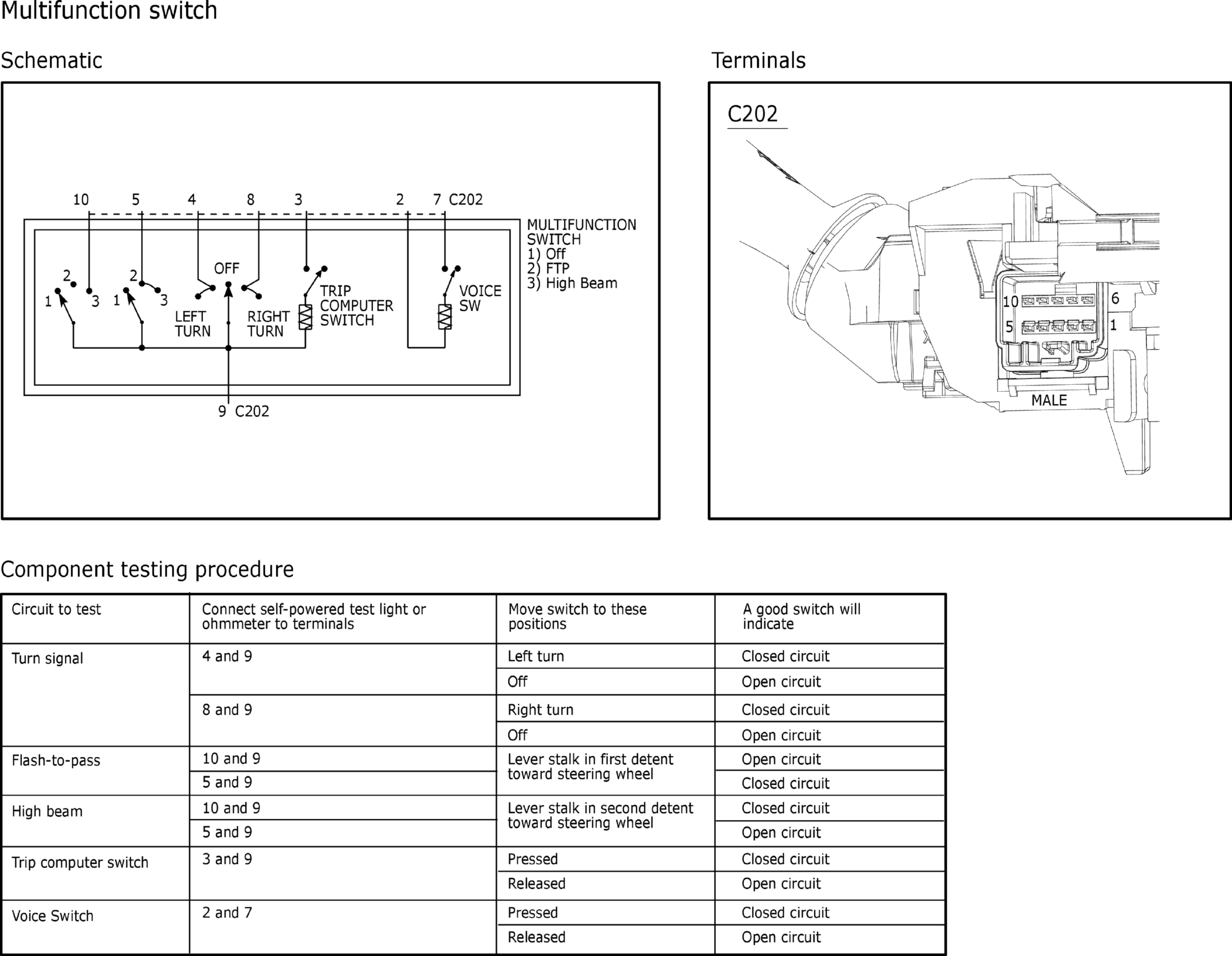

Fig 1: Multifunction Switch
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
